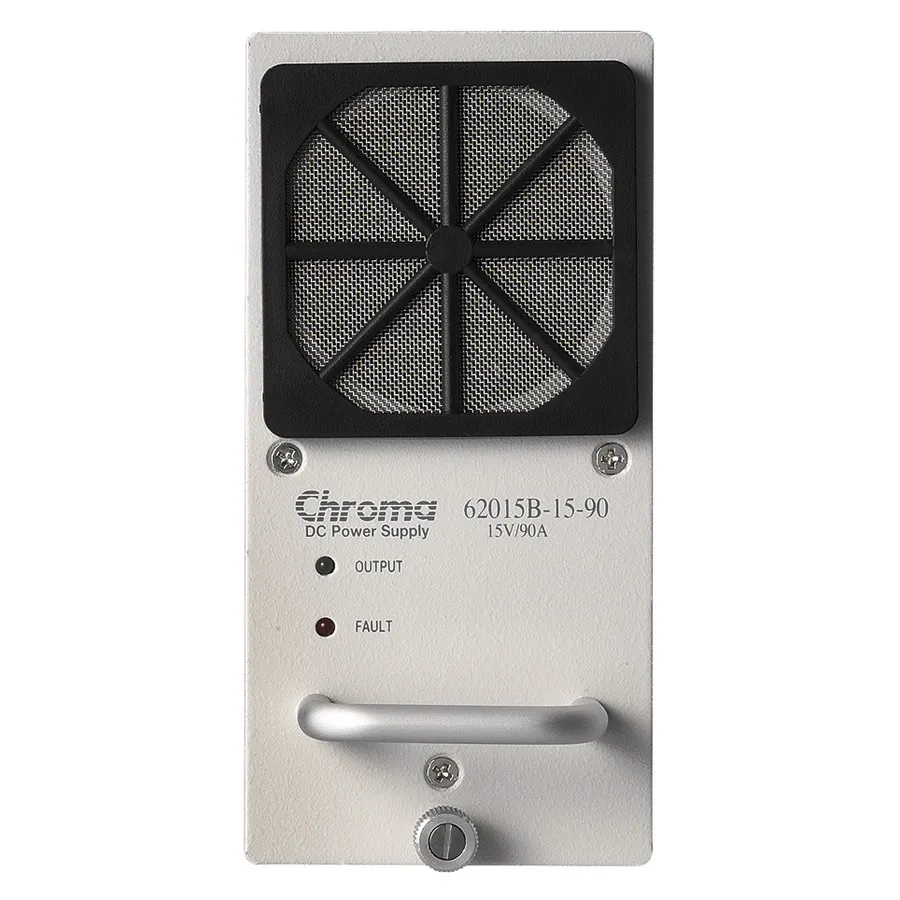

Chroma 62015B-15-90 Modular DC Power Supply
Chroma 62015B-15-90 modular DC supply offers 15V/90A (1350W) with hot-swap, N+1 redundancy, and CAN support for burn-in and plating.
Product details
| Model | 62015B-15-90 |
| Manufacturer | Chroma |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Chroma 62015B-15-90 is a 15V, 90A modular DC power supply module from the 62000B series, delivering 1350W of regulated power. Designed for high-power applications, this module features exceptional power density and low current ripple, making it ideal for continuous operation burn-in testing and industrial plating applications.
The module is part of Chroma's modular system architecture, which allows multiple modules to be combined in parallel configurations for even higher power output up to 120kW, with current sharing and CAN bus control for sophisticated system management.
Key Features
- Output: 15V, 90A, 1350W
- Hot-swappable design with N+1 redundancy support
- High power density: 464 mW/cm³
- Remote sense and remote ON/OFF control
- DC OK signal output for system monitoring
- Optional CAN Bus for networked multi-module systems
- Optional Softpanel graphical user interface
- Master/Slave parallel control capability
- Voltage and current measurement via CAN command
Applications
- LCD panel burn-in and reliability testing
- DC-DC converter and power inverter qualification
- Notebook computer and battery charger testing
- SMD electroplating and industrial plating operations
- IT product life testing (converters, inverters, routers)
- 24/7 operation systems requiring redundancy
Specifications
| Power Rating | 1350 W |
| Output Voltage | 15 V |
| Output Current | 90 A |
| Series | 62000B Series |
| Special Features | Master/Slave Modes, VI Measurement |
