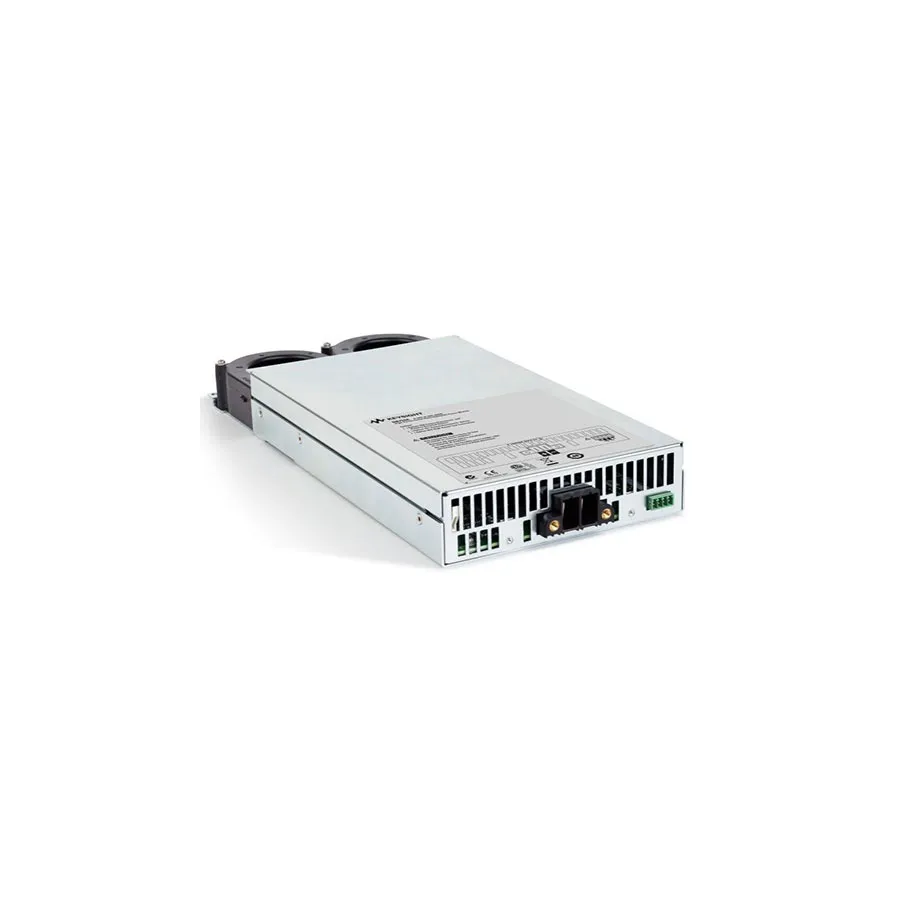

Keysight N6756A/054/761 DC Power Module
Request a quote
Keysight N6756A is a 500 W autoranging DC power module with 0.06% voltage accuracy and optional high-speed digitizer extensions for ATE and bench testing.
Product details
| Model | N6756A/054/761 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6756A is a 500 W high-performance, autoranging DC power module designed for automated test equipment and bench testing. It provides low noise output and high programming accuracy with speeds up to 50 times faster than conventional supplies. This configuration includes high-speed test extensions with digitizer capabilities for precise measurement of transient and pulse events.
Key Features
- Voltage range: 0 to 60 V
- Current range: 0 to 17 A (500 W maximum power)
- Voltage programming accuracy: 0.06% + 25 mV
- Current measurement accuracy: 0.1% + 15 mA
- Constant voltage ripple and noise: 6 mV rms, 1 mV peak-to-peak
- Constant current ripple and noise: 4 mA rms
- High-speed test extension with oscilloscope-like digitizer
- Output disconnect relays
- Programmable via GPIB, LAN, USB, and LXI interfaces
Applications
- Automated test equipment (ATE) systems using N6700 or N6705 mainframes
- High-speed transient and pulse event characterization
- Device-under-test (DUT) validation and burn-in testing
Specifications
| Power Rating | 500 W |
| Output Voltage | 60 V |
| Output Current | 17 A |
