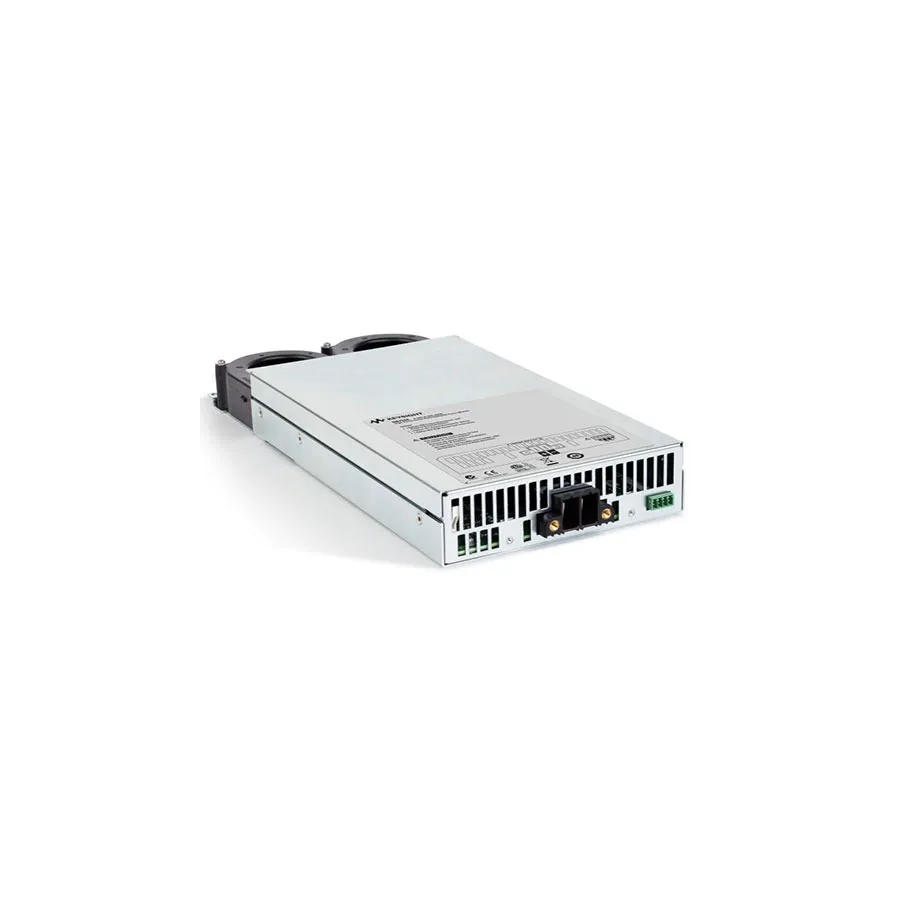

Keysight N6756A/054 High-Speed DC Power Module
Request a quote
Keysight N6756A/054 500W autoranging DC power module with 60V/17A output, high-speed test extension digitizer, 0.06% accuracy, and LXI compliance.
Product details
| Model | N6756A/054 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6756A/054 is a 500W high-performance autoranging DC power module featuring integrated high-speed test extensions. It delivers precise voltage and current control with exceptional accuracy and includes an oscilloscope-like digitizer for capturing high-speed transient and pulse events in device-under-test (DUT) applications.
Key Features
- Autoranging output: 0–60V, 0–17A (500W maximum)
- Voltage programming accuracy: 0.06% + 25 mV (at 23°C ±5°C)
- Current measurement accuracy: 0.1% + 15 mA
- Ripple and noise: 6 mV peak-to-peak voltage, 1 mV rms voltage, 4 mA rms current (20 Hz to 20 MHz)
- High-speed test extension with digitizer for transient capture
- GPIB, LAN, USB, and LXI compliance standard
- Double-wide module format
- Overvoltage, overcurrent, and overtemperature protection
Applications
- High-speed transient and pulse event measurement
- DUT characterization with real-time waveform capture
- Precision automated test equipment (ATE) systems
- DC power analysis and benchmarking
Specifications
| Power Rating | 500 W |
| Output Voltage | 60 V |
| Output Current | 17 A |
