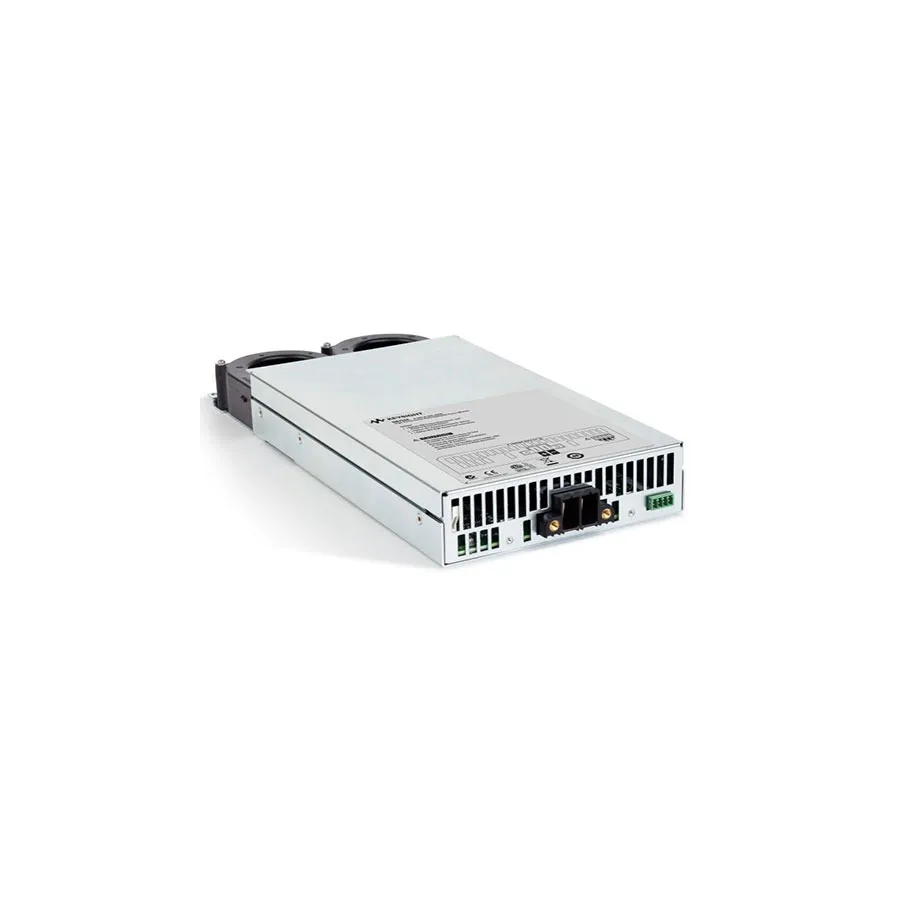

Keysight N6755A/054 DC Power Module
Request a quote
Keysight N6755A/054 is a 500 W autoranging DC power module with 0.06% accuracy, low noise, and includes high-speed test extension capability.
Product details
| Model | N6755A/054 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6755A/054 is a 500 W high-performance, autoranging DC power module specifically configured with high-speed test extensions. It provides fast programming speeds up to 50 times faster than conventional power supplies, with exceptional accuracy and minimal noise. The module includes an oscilloscope-like digitizer for precise measurement of high-speed transient and pulse events.
Key Features
- Autoranging output: 0 to 20 V, 0 to 50 A, 500 W maximum
- Voltage programming accuracy: 0.06% + 10 mV
- Current measurement accuracy: 0.1% + 30 mA
- Low ripple & noise: 5 mV rms (constant voltage)
- Fast programming speeds: up to 50 times faster than conventional supplies
- High-speed test extension with oscilloscope-like digitizer included
- Occupies 2 of 4 mainframe slots
Applications
- High-speed transient and pulse event testing and characterization
- Precision device-under-test (DUT) measurement
- Automated test equipment (ATE) systems in N6700 modular power systems
- Bench testing with N6705 DC Power Analyzer
Specifications
| Power Rating | 500 W |
| Output Voltage | 20 V |
| Output Current | 50 A |
