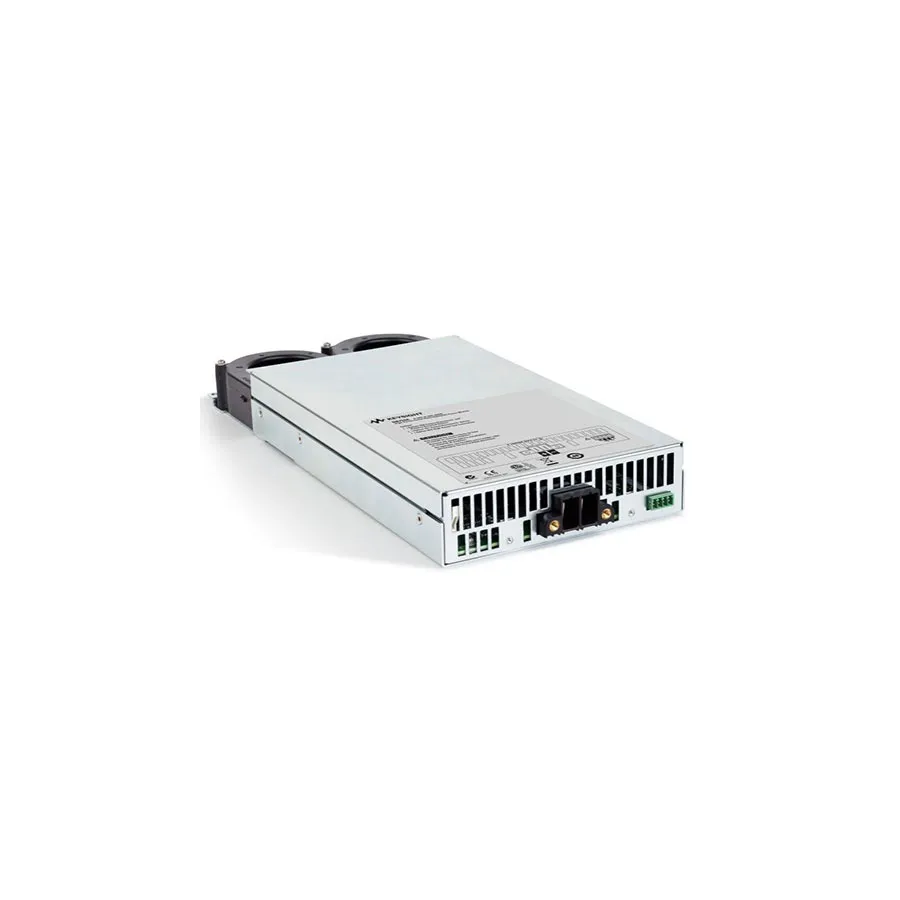

Keysight N6754A/760 DC Power Module
Request a quote
Keysight N6754A/760 is a 300 W autoranging DC power module with 0.06% voltage accuracy, low noise output, and includes output disconnect & polarity reversal relay.
Product details
| Model | N6754A/760 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6754A/760 is a 300 W high-performance, autoranging DC power module designed for automated test equipment (ATE) systems and bench testing. It features fast programming speeds up to 10 to 50 times faster than conventional power supplies, with excellent accuracy and low noise characteristics. This module includes an output disconnect relay and polarity reversal relay for enhanced protection and control.
Key Features
- Autoranging output: 0 to 60 V, 0 to 20 A, 300 W maximum
- Voltage programming accuracy: 0.06% + 25 mV
- Current measurement accuracy: 0.1% + 8 mA
- Low ripple & noise: 6 mV rms (constant voltage)
- Fast programming speeds: up to 50 times faster than conventional supplies
- Output disconnect and polarity reversal relay included
- Optional high-speed test extension with digitizer
Applications
- Automated test equipment (ATE) systems in N6700 modular power systems
- Bench testing with N6705 DC Power Analyzer
- High-speed transient and pulse event testing
- Precision device-under-test (DUT) characterization
Specifications
| Power Rating | 20 W |
| Output Voltage | 20 V |
| Output Current | 3 A |
| Series | N6700 Series |
