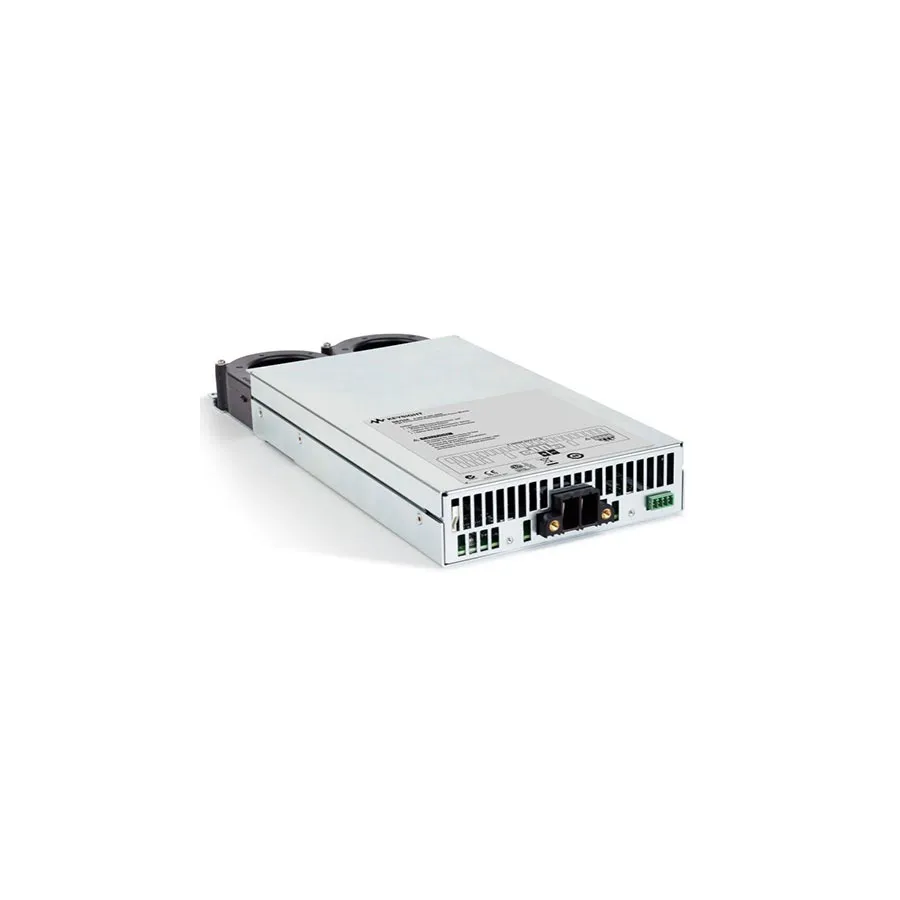

Keysight N6754A/054/761 Autoranging DC Power Module
Request a quote
Keysight N6754A/054/761 is a 300W autoranging DC power module with high-speed test extension and output control relays, 60V/20A output, 0.06% accuracy.
Product details
| Model | N6754A/054/761 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6754A/054/761 is a 300W high-performance autoranging DC power module with high-speed test extension and output control relays for advanced testing requirements. Optimized for ATE systems and bench testing applications requiring both dynamic transient measurement and flexible power switching capabilities.
Key Features
- 300W autoranging DC power output with 0-60V / 0-20A ratings
- High-speed test extension option (054) for transient measurements
- Output control relay option (761) for switching and isolation
- Voltage accuracy: 0.06% + 25mV
- Low ripple and noise: 6mV voltage, 1mV rms, 4mA current rms
- Programming speed: 10-50× faster than conventional power supplies
- Overvoltage, overcurrent, and overtemperature protection
- Double-wide module format (occupies 2 of 4 mainframe slots)
Applications
- Automated Test Equipment (ATE) systems
- Bench test and measurement applications
- Transient and pulse event testing
- Device testing with load switching or isolation requirements
Specifications
| Power Rating | 300 W |
| Output Voltage | 60 V |
| Output Current | 20 A |
| Series | N6700C Series |
