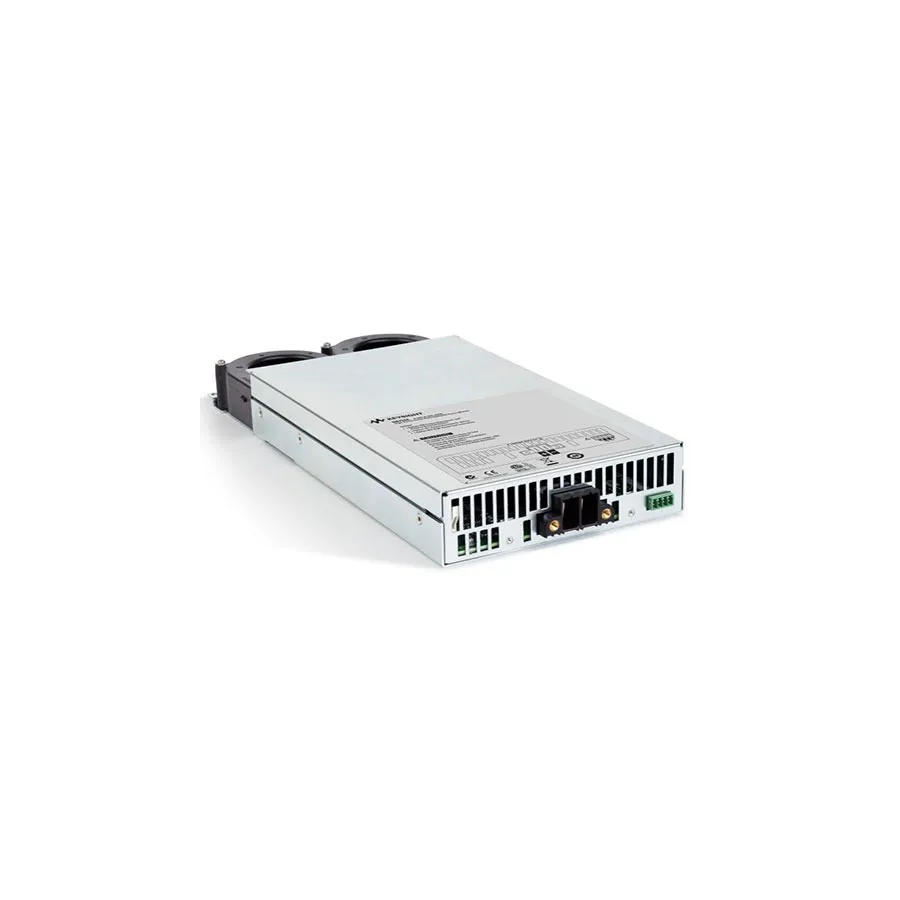

Keysight N6753A/054 DC Power Module
Request a quote
Keysight N6753A/054 is a 300W programmable DC power module with 0–20V/50A output, 0.06% voltage accuracy, and optional high-speed digitizer for transient analysis.
Product details
| Model | N6753A/054 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6753A is a 300W high-performance programmable DC power module with autoranging capability, designed for automated test equipment (ATE) systems and bench testing. It delivers low noise, high accuracy, and programming speeds 10 to 50 times faster than conventional power supplies. The /054 option includes high-speed test extensions with an oscilloscope-like digitizer for precise measurement of high-speed transient and pulse events.
Key Features
- 300W output power (0–20V, 0–50A)
- Voltage programming accuracy: 0.06% + 10 mV
- Constant voltage ripple and noise: 5 mV RMS
- Programming speeds 10–50× faster than conventional supplies
- High-speed digitizer for transient analysis (054 option)
- Standard interfaces: GPIB, LAN, USB, LXI
Applications
- Automated test equipment (ATE) systems
- Bench testing and device characterization
- High-speed power delivery and monitoring for devices under test (DUT)
- Production testing with precision voltage and current control
Specifications
| Power Rating | 300 W |
| Output Voltage | 20 V |
| Output Current | 50 A |
