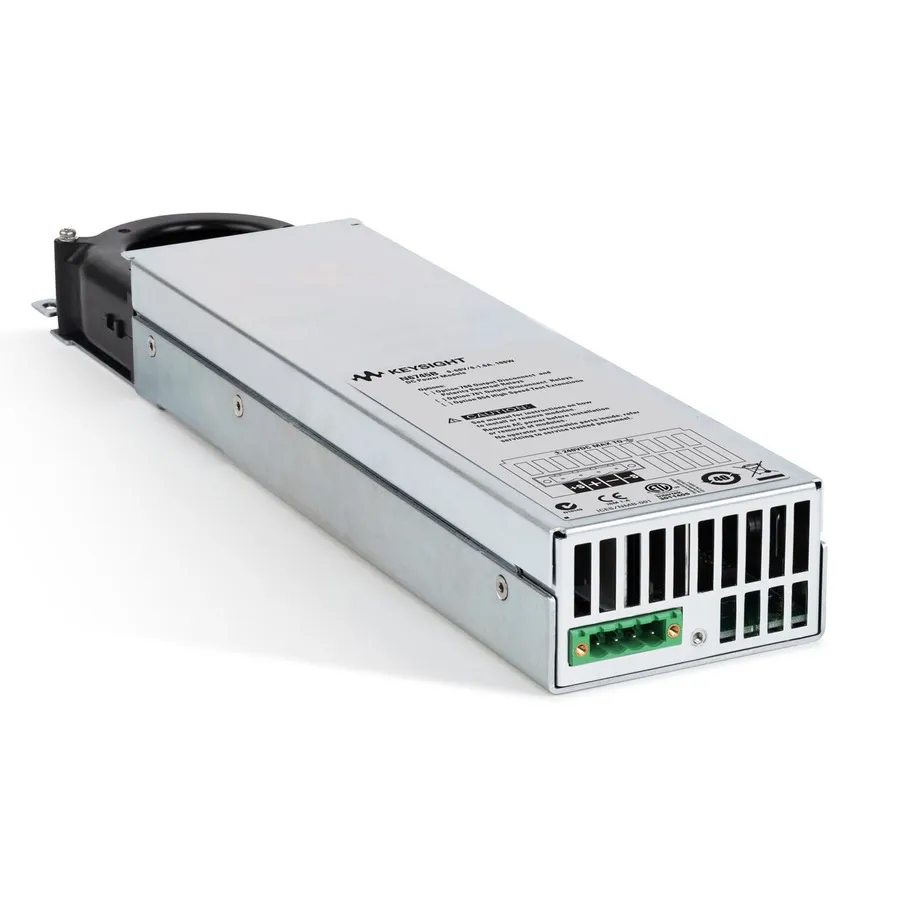

Keysight N6745B/054/760 DC Power Module
Request a quote
Keysight N6745B/054/760 is a 100W DC power module with 0 to 60V/1.6A output, featuring output disconnect and polarity reversal relays for the N6700 series.
Product details
| Model | N6745B/054/760 |
| Manufacturer | Keysight |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N6745B/054/760 is a 100 W DC power module for the N6700 Series modular power system. It provides programmable output voltages (0 to 60 V) and currents (0 to 1.6 A) with integrated output disconnect and polarity reversal relays for enhanced device protection and test flexibility. This module is suitable for powering devices under test or providing power for ATE system resources.
Key Features
- Output disconnect relay for safe power removal
- Polarity reversal relay for flexible test configurations
- Voltage programming accuracy: 0.1% + 60 mV
- Current measurement accuracy: 0.15% + 20 mA
- Low ripple and noise: 9 mV rms (constant voltage mode)
- Quick disconnect connector
- Compatible with N6700, N6701, N6702, N6705 mainframes
Applications
- Device power supply in automated test equipment (ATE) systems
- Power source for fixture control and instrumentation
- Bench testing and design validation
- Research and development applications
Specifications
| Voltage Range | 0 to 60 V |
| Current Range | 0 to 1.6 A |
| Output Power | 100 W |
| Voltage Programming Accuracy | 0.1% + 60 mV |
| Current Measurement Accuracy | 0.15% + 20 mA |
| Voltage Ripple & Noise (20 Hz to 20 MHz) | 9 mV rms |
| Voltage Peak-to-Peak Ripple | 25 mV |
| Current Ripple & Noise | 2 mA rms |
| Output Disconnect Relay | Yes |
| Polarity Reversal Relay | Yes |
| Connector Type | Quick disconnect |
| Compatible Mainframes | N6700, N6701, N6702, N6705 |
