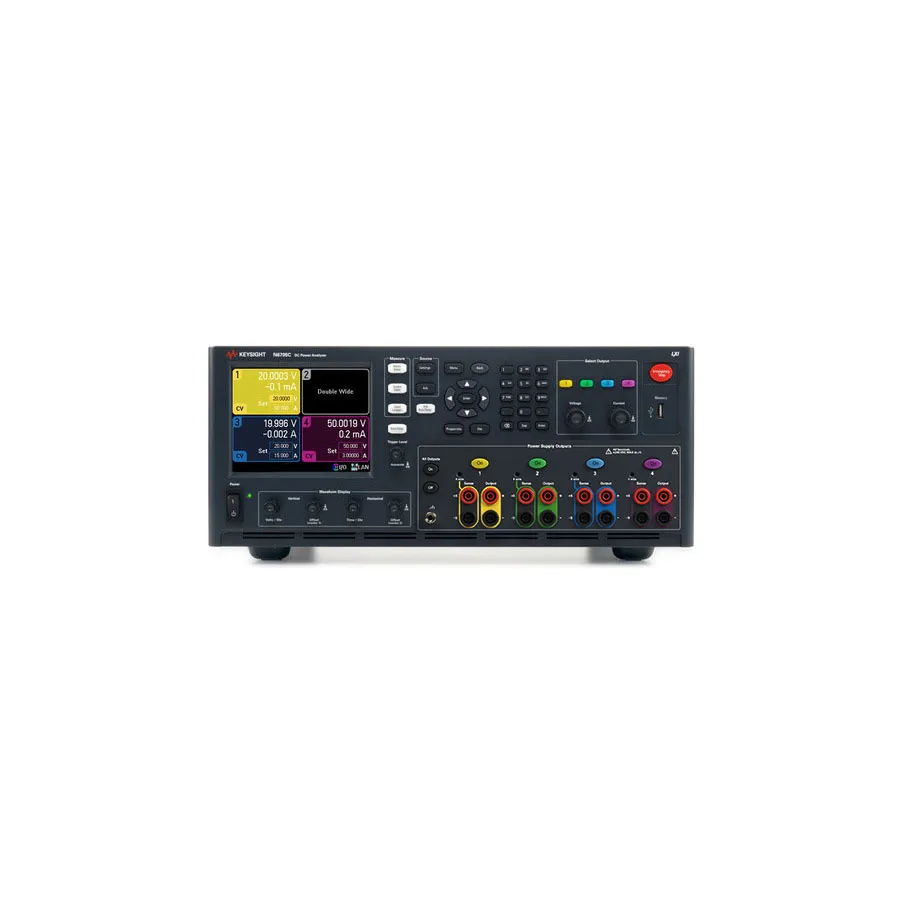

Keysight N6705C/RBP DC Power Analyzer Mainframe

Overview

The Keysight N6705C/RBP is a modular DC power analyzer mainframe designed for R&D engineers testing and validating devices under test. It sources and measures DC voltage and current while combining the functionality of up to 4 DC power supplies, a digital multimeter, oscilloscope, arbitrary waveform generator, and data logger into a single integrated instrument. The mainframe accepts 1 to 4 interchangeable DC power modules from the N6700 series, allowing total system power up to 600W.

Key Features

• 4-slot mainframe supports up to 4 modular DC power modules with 600W total capacity
• Voltmeter accuracy: Up to 0.025% + 50 µV with 18-bit resolution
• Ammeter accuracy: Up to 0.025% + 8 nA with 18-bit resolution
• Integrated oscilloscope function: Digitizes voltage and current at up to 200 kHz, 512 kpts resolution
• Data logger: Continuous measurement logging at intervals from 20 µs to 60 s with up to 500 million readings
• Arbitrary waveform generator: Up to 100 kHz bandwidth, output power up to 500 W
• 4 GB non-volatile storage for data logs, scope traces, and instrument settings
• Flexible modular design: Mix and match over 20 DC power modules to optimize test requirements
• Communications: GPIB, USB 2.0, 10/100 Ethernet LAN (LXI Class C compliant)
• Recessed binding posts configuration (special order)
• RoHS compliant

Applications

• R&D testing and design validation for electronic devices
• Device power consumption analysis and characterization
• Transient and pulse event testing via integrated oscilloscope
• Long-term data acquisition and power profile logging
• Automated test equipment (ATE) system power distribution
