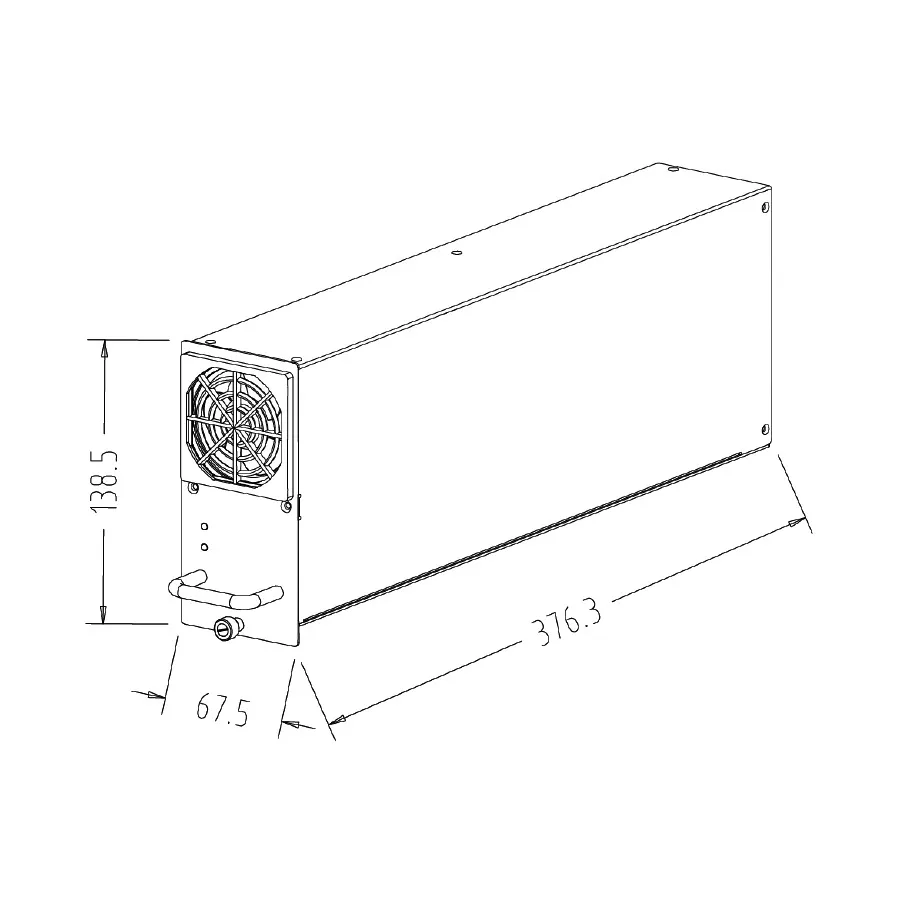

Chroma 62015B-60-25 Modular DC Power Supply
Request a quote
Chroma 62015B-60-25 delivers 60V, 25A, 1500W with hot-swap design, N+1 redundancy, and CAN scalability to 120KW for burn-in and plating applications.
Product details
| Model | 62015B-60-25 |
| Manufacturer | Chroma |
| Category | Modular DC Supplies |
| Availability | Made to order |
Description
Overview
The Chroma 62015B-60-25 is a modular DC power supply module designed for the 62000B Series system. It provides 60V, 25A, 1500W output and features hot-swappable design with N+1 redundancy, making it ideal for continuous 24-hour operations in burn-in testing and industrial plating applications.
Key Features
- Output specification: 60V, 25A, 1500W per module
- Hot-swappable with N+1 redundancy for uninterrupted operation
- Master/Slave Parallel Control for extended current or voltage
- CAN Bus communication with optional CSU for scaling to 120KW across 14 mainframes
- High Power Density: 464 mW/cm³ (7.13 W/in³)
- Remote Sense, Remote ON/OFF, and DC OK Signal Output
- Low current ripple design
- Mounts in 8190-3 (3 modules, 4.5KW) or 8190-6 (6 modules, 9KW) mainframes
Applications
- LCD panel and DC-DC converter burn-in testing
- SMD plating and electroplating production lines
- Power inverter and battery charger testing
- Notebook computer and electronic device burn-in
- Continuous-duty power systems for 24-hour operations
Specifications
| Power Rating | 1500 W |
| Output Voltage | 60 V |
| Output Current | 25 A |
| Series | 62000B Series |
| Special Features | Master/Slave Modes, VI Measurement |
