Saleae LOGIC PRO 16-B Logic Analyzer
Request a quote
Saleae Logic Pro 16-B is a 16-channel USB logic analyzer with 100 MHz digital bandwidth, 5 MHz analog bandwidth, and support for 20+ protocol decoders.
Product details
| Model | LOGIC PRO 16-B |
| Manufacturer | Saleae |
| Category | Logic Probes & Cables |
| Availability | Made to order |
Description
Overview

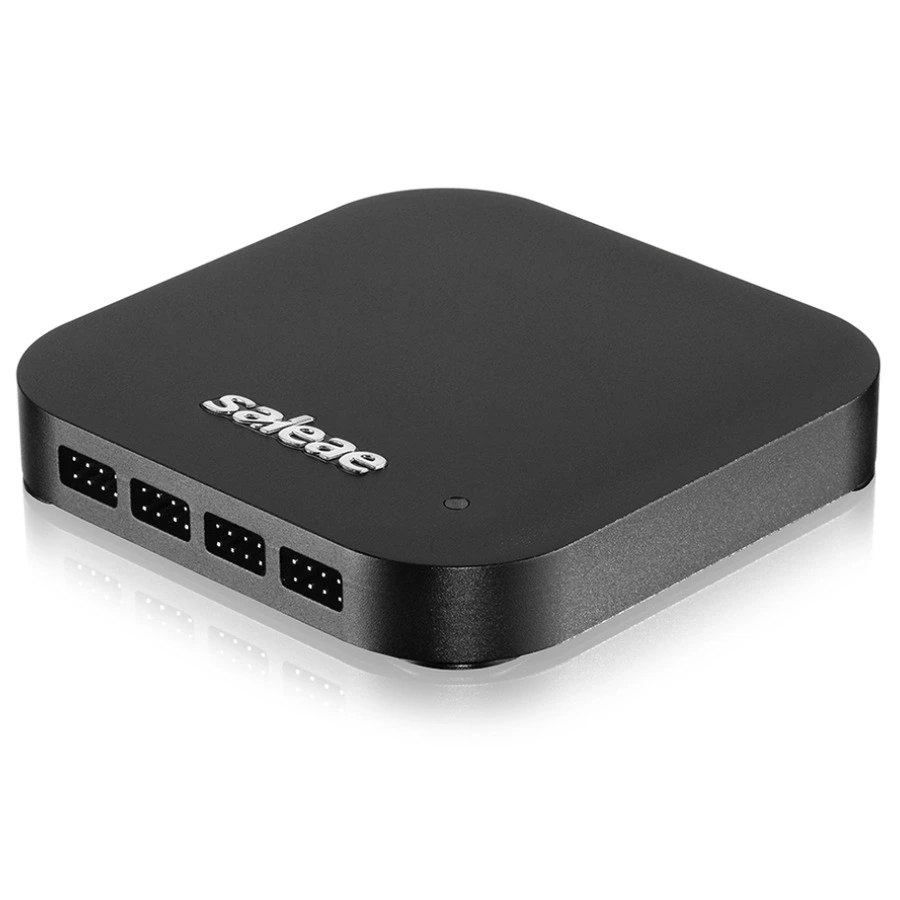

The Saleae Logic Pro 16-B is a 16-channel USB logic analyzer designed for embedded systems debugging and verification. Each input channel serves dual purpose for recording both digital and analog signals simultaneously. The device connects via USB 3.0 to a computer and uses the Saleae Logic software for recording, viewing, and analyzing signals.
Key Features
- 16 input channels with dual digital and analog capability
- 500 MSPS digital sampling with 100 MHz maximum digital bandwidth
- 50 MSPS analog sampling with 5 MHz analog bandwidth
- USB 3.0 Super Speed connectivity
- Decoding support for 20+ protocols including SPI, I2C, serial, CAN, JTAG, 1-Wire, and more
- Customizable RGB LED with 24-bit color control
- Protocol search and triggering capabilities
- Data export in CSV and MATLAB formats
- Cross-platform support for Windows, Mac, and Linux
Applications
- Firmware debugging for microcontrollers and embedded systems
- FPGA and digital circuit functional verification
- SPI and I2C protocol analysis and troubleshooting
- Performance profiling and optimization of embedded applications
- Reverse engineering of digital communication signals
- Multi-channel data logging and signal capture
Specifications
| Bandwidth | 5 MHz |
| Sampling Rate | 500 MS/s |
| Series | Logic Series |
| Alternate Product Number | SAL-00115 |
| Capacitance | 10pF |
| Dimensions | 92 x 92 x 15 mm |
| Includes | Logic Pro 16 (Black), 4x 4 Channel Wire Harnesses, 32x Micro-Gripper Hooks, USB 3.0 Cable, Carry Case, Getting Started Guide |
| Input Voltage | 10 V |
| Number of Inputs | 16 |
| Resistance | 2 MΩ |
| USB Port Type | USB 3.0 |
| Warranty | 3 Years |
