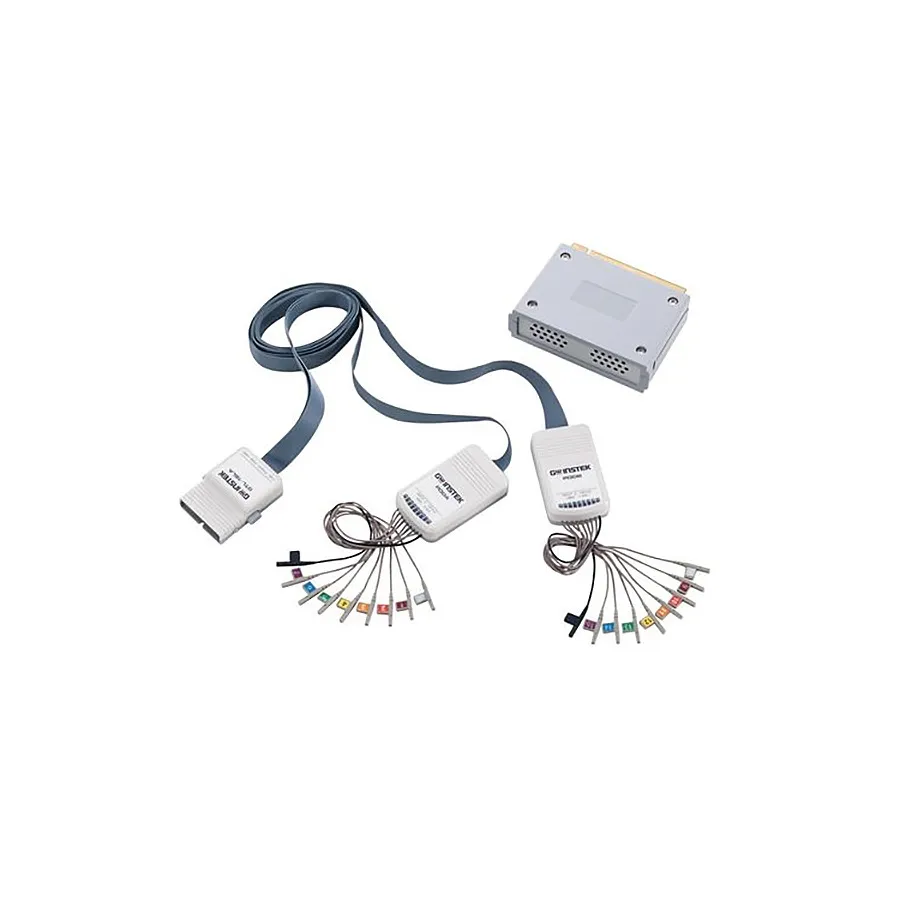

GW Instek DS2-16LA 16-Channel Logic Analyzer Module
Request a quote
GW Instek DS2-16LA is a 16-channel logic analyzer module with 200MHz bandwidth, 500MSa/s sample rate, and serial bus decoding (I2C, SPI, UART).
Product details
| Model | DS2-16LA |
| Manufacturer | GW Instek |
| Category | Logic Probes & Cables |
| Availability | Made to order |
Description
Overview
The GW Instek DS2-16LA is a 16-channel logic analyzer module that transforms any GDS-2000A series oscilloscope into a powerful Mixed Signal Oscilloscope (MSO). It enables simultaneous digital and analog signal analysis with serial bus decoding capabilities, allowing engineers to correlate logic and analog waveforms on a single display.
Key Features
- 16 digital input channels (D15-D0) with 200MHz bandwidth
- 500MSa/s sample rate with up to 2M record length per channel
- Multiple threshold selections: TTL, CMOS, ECL, PECL, user-defined
- User-defined threshold range: ±10V with ±100mV accuracy
- Maximum input voltage: ±40V with minimum swing of ±500mV
- Advanced trigger types: Edge, Pattern, Pulse Width, Serial Bus
- Serial bus decoding: I2C, SPI, UART protocols supported
- Field-installable module with plug-in design
Applications
- Embedded system development and debugging
- Serial communication protocol analysis (I2C, SPI, UART)
- Mixed-signal circuit troubleshooting
- FPGA and microcontroller verification
- Real-time logic waveform capture and analysis
- Time-correlated analog and digital signal analysis
Specifications
| Number of Channels | 16 |
| Bandwidth | 200 MHz |
| Series | DS2 Series |
| Series Compatibility | GDS-2000A Series |
