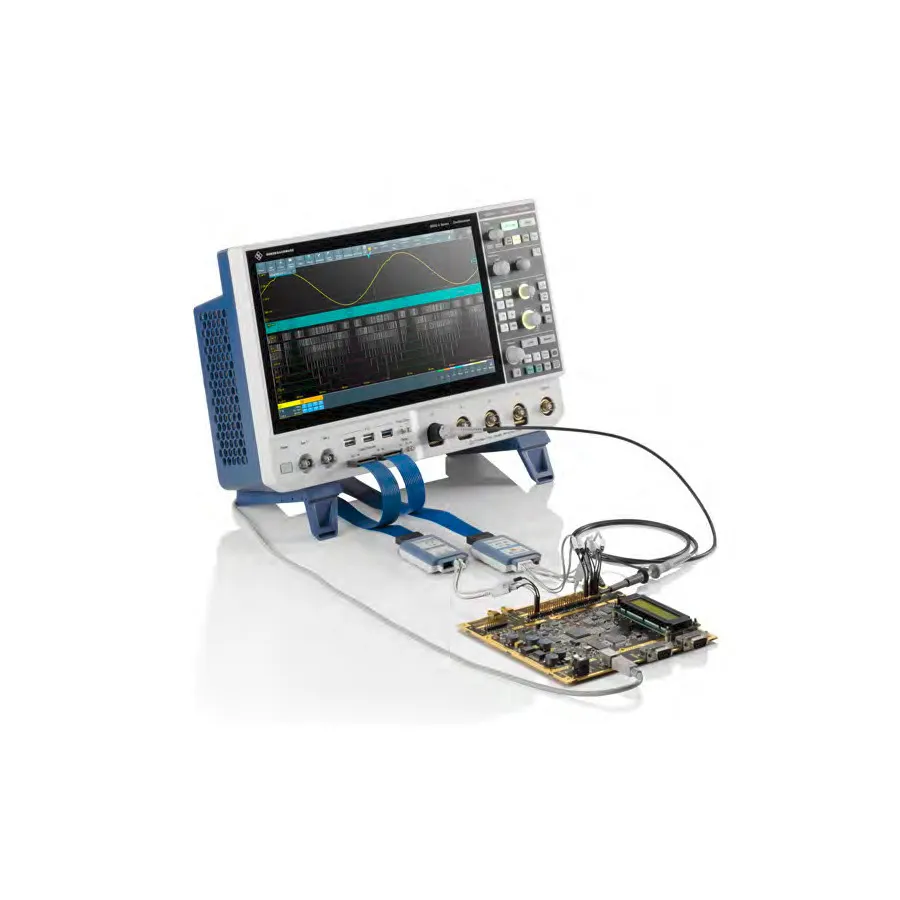

Rohde & Schwarz MXO4-B1 MSO Logic Probe Option
Request a quote
Rohde & Schwarz MXO4-B1 MSO logic probe option adds 16 digital channels to MXO 4 oscilloscopes with 5 Gsample/s sampling.
Product details
| Model | MXO4-B1 |
| Manufacturer | Rohde & Schwarz |
| Category | Logic Probes & Cables |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO4-B1 is a mixed signal probe option that extends the capabilities of MXO 4 series oscilloscopes. Unlike conventional mixed signal oscilloscopes that require trading off between digital and analog channel usage, the MXO4-B1 allows simultaneous operation of all 16 digital logic channels alongside full analog channel functionality.
Key Features
- 16 digital logic channels
- 5 Gsample/s sample rate on digital channels
- Simultaneous operation with all analog channels
- Includes 2 MSO logic probes
- Compatible with all MXO 4 series oscilloscopes
Applications
- Mixed signal protocol analysis and debugging
- Digital state and timing measurements
- Correlated analog and digital signal capture
Specifications
| Number of Channels | 16 |
| Bandwidth | 400 |
| Sampling Rate | 5 GS/s |
| Series | MXO4 Series |
| Alternate Product Number | 1335.4130.02 |
| For Use With | RT-ZL04 probe |
| Series Compatibility | MXO4 Series |
| Type | Logic Probe |
