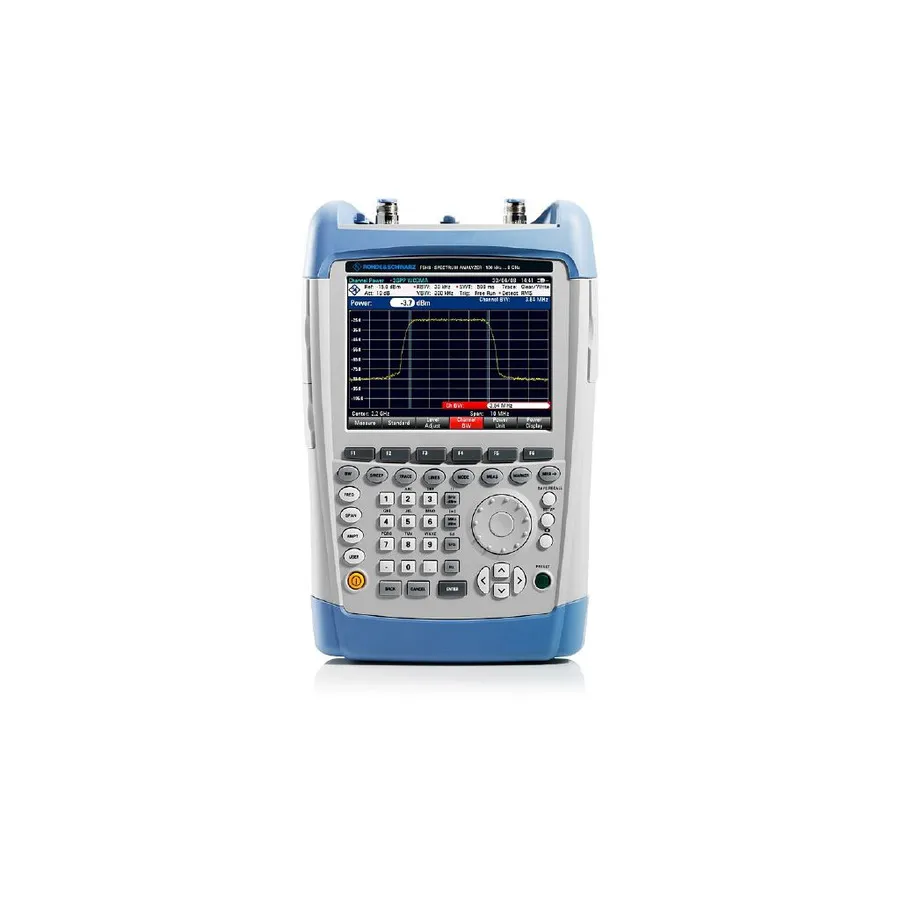

Rohde & Schwarz FSH20.30 Spectrum Analyzer
Request a quote
Rohde & Schwarz FSH20.30 all-in-one handheld analyzer combines spectrum analysis, network analysis, and power measurement from 9 kHz to 20 GHz with −161 dBm sensitivity.
Product details
| Model | FSH20.30 |
| Manufacturer | Rohde & Schwarz |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSH20.30 is a multi-purpose handheld analyzer that combines spectrum analyzer, network analyzer, cable and antenna analyzer, and power meter functions in a single rugged instrument. Its splash-proof housing, color display, and long battery life make it ideal for outdoor field measurements and site verification work.
Key Features
- Frequency range: 9 kHz to 20 GHz
- Excellent sensitivity: <−161 dBm (1 Hz) with preamplifier
- Internal tracking generator for network analysis and cable testing
- VSWR bridge and bias tee for advanced measurements
- Spectrum analyzer, network analyzer, and cable/antenna analyzer in one
- Brilliant color display with monochrome mode for extreme conditions
- Rugged, splash-proof housing for field use
- Li-ion battery for up to 4.5 hours uninterrupted operation
- USB and LAN connectivity for documentation and remote control
- Directly accessible keys for frequently used functions
Measurement Capabilities
Power Measurements
- TDMA power measurement for time-division multiple access timeslots
- Channel power measurement for LTE, WCDMA, GSM, TD-SCDMA, cdmaOne, CDMA2000, and 1xEV-DO standards with predefined settings
- Adjacent channel power display (absolute or relative)
- Channel power meter mode for measurement up to +30 dBm
Cable and Antenna Testing
- One-port cable loss measurements
- Distance-to-fault measurements with threshold detection for true cable faults
- Gated sweep for measuring pulsed signals (GSM, WLAN, WiMAX)
Field Measurements
- Electromagnetic field (EMF) measurements with directional and isotropic antennas
- Spurious emission measurement using spectrum emission mask (SEM) function
Applications
- Transmitter system installation and maintenance
- Cable and antenna verification
- Signal quality assessment in broadcasting and radiocommunications
- Electric field strength measurements
- Lab and field testing
Specifications
| Frequency Range | 15.0 - 30.0 GHz |
| Maximum Frequency | 20 GHz |
| Noise Floor | -163 dBm |
| Series | FSH Series |
| Alternate Product Number | 1314.2000.30 |
| Battery Life | 3 hrs. |
| Connector Type | N (f) |
| Display | 7" Antiglare Color Touch |
| Includes | Lithium-ion battery pack, LAN and USB cables, AC power supply, CD-ROM with and documentation, quick start guide |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Product Type | Handheld |
| Type | Handheld |
