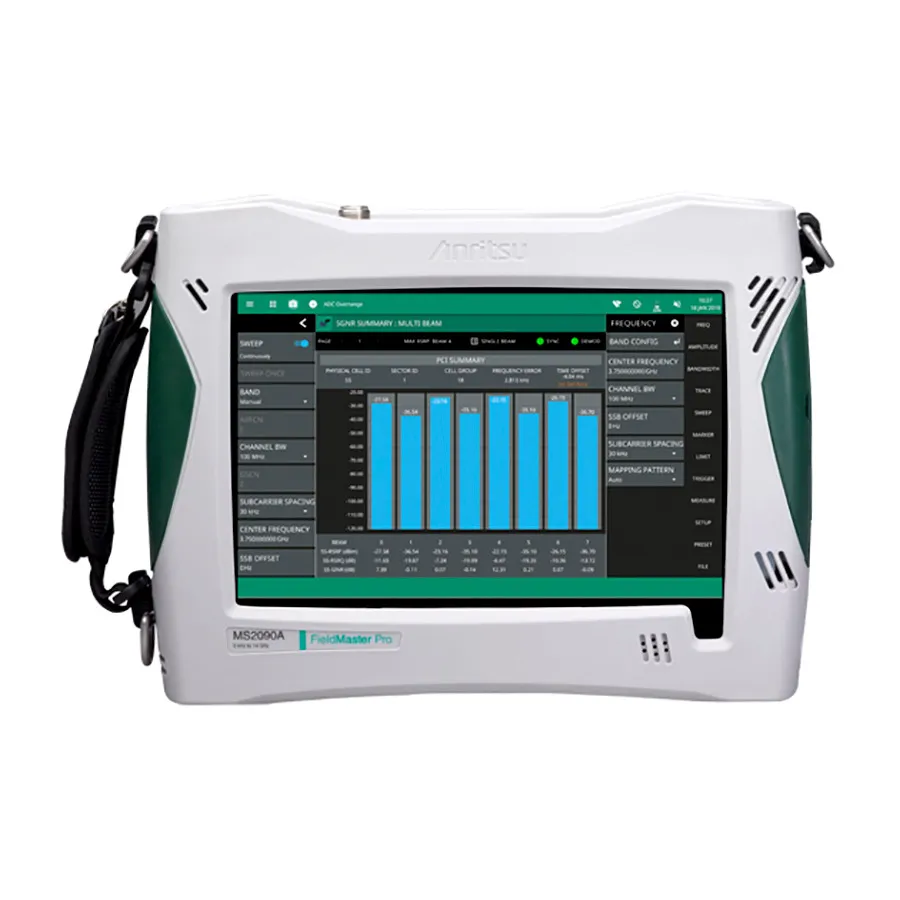

Anritsu MS2090A/0754 Handheld Spectrum Analyzer
Request a quote
Anritsu MS2090A/0754 handheld spectrum analyzer with 9 kHz to 54 GHz coverage, -164 dBm DANL, and integrated 5G/LTE demodulation.
Product details
| Model | MS2090A/0754 |
| Manufacturer | Anritsu |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2090A/0754 is a handheld real-time spectrum analyzer designed for field testing of modern wireless technologies. With continuous frequency coverage from 9 kHz to 54 GHz, this rugged instrument combines a touchscreen interface, high RF performance (DANL of -164 dBm with preamp), and built-in demodulation for 5G, LTE, and other digital standards. The device features IQ data capture capabilities for offline analysis and a comprehensive measurement suite for both swept and real-time spectrum analysis.
Key Features
- Frequency range: 9 kHz to 54 GHz
- DANL: -164 dBm (with preamp)
- Third Order Intercept (TOI): +20 dBm (typical)
- Analysis bandwidth: 100 MHz
- Amplitude accuracy: ±0.5 dB (typical) at <14 GHz
- Phase noise: -110 dBc/Hz at 100 kHz offset (1 GHz)
- Resolution bandwidth: 1 Hz to 10 MHz
- Real-time spectrum analysis bandwidth: 22, 55, or 110 MHz (optional)
- Demodulation: 5GNR, LTE FDD, RF, modulation quality, and SSB signal analysis
- Integrated spectrogram display for interference monitoring
- IQ data capture and streaming capability
- Zero span with 60 ns minimum span
- Ruggedized design with touchscreen interface
Applications
- 5G and LTE signal testing
- Wireless backhaul network analysis
- Aerospace and defense applications
- Satellite system testing
- Radar and EMC measurements
- Spectrum clearing and radio alignment
- Harmonic and distortion analysis
- Cellular interference monitoring
Included Accessories
- Ethernet cable (7 ft / 213 cm)
- Stylus and shoulder strap
- Li-Ion battery
- AC/DC power supply
- USB 3.0 cable (Type-A to Type-C, 1 m)
- SMB to BNC adapters (qty 3)
- BNC to SMB cable (1 m)
- Certificate of calibration and conformance
Specifications
| Frequency Range | > 30.0 GHz |
| Maximum Frequency | 54 GHz |
| Tracking Generator | No |
| Preamplifier | Yes |
| Noise Floor | -130 dBm |
| Series | Field Master Pro Series |
| Battery Life | 2 hrs. |
| Connector Type | Ruggedized V(m) |
| Display | 10.1" Capacitive Touchscreen |
| Includes | Ethernet Cable, Stylus, Shoulder Strap, Li-Ion Battery, AC/DC Power Supply, USB Cable, SMB Plug to BNC Jack Adapter, BNC to SMB Cable, Certificate of Calibration and Conformance |
| Interface | USB, Ethernet |
| Minimum Frequency | 9 kHz |
| Type | Handheld |
