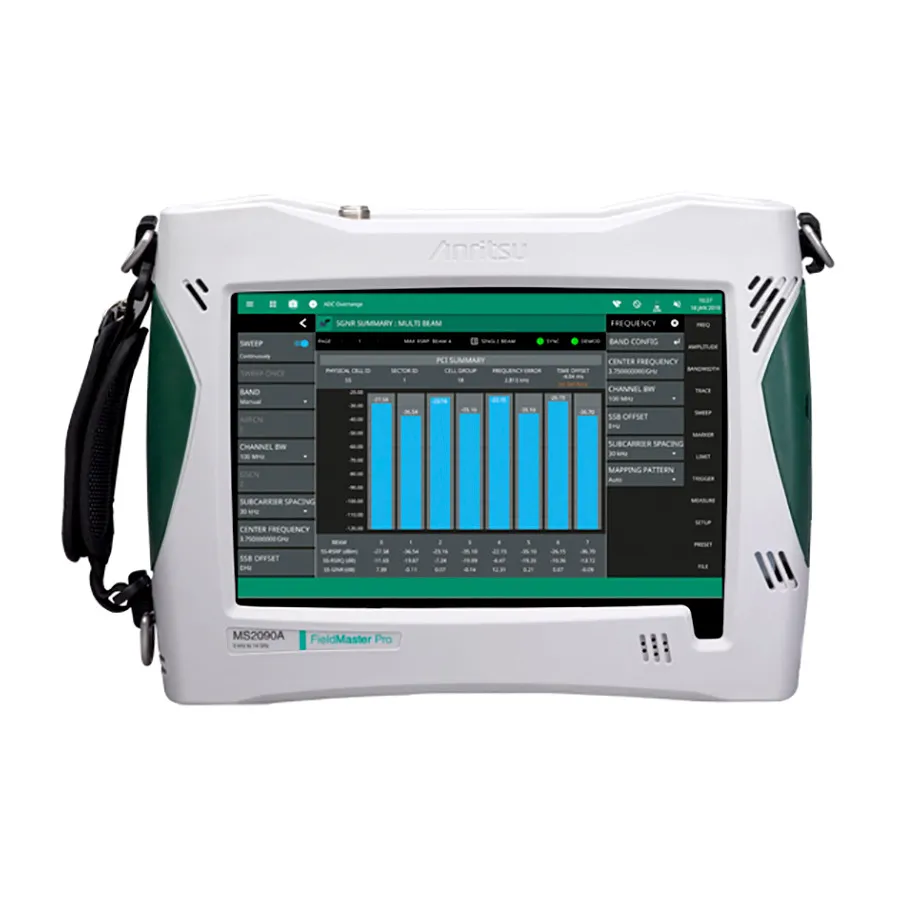

Anritsu MS2090A/0709 Handheld Spectrum Analyzer
Request a quote
Anritsu MS2090A/0709 is a handheld real-time spectrum analyzer covering 9 kHz to 9 GHz with -164 dBm DANL and +20 dBm TOI, designed for 5G and LTE testing.
Product details
| Model | MS2090A/0709 |
| Manufacturer | Anritsu |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu Field Master Pro MS2090A/0709 is a compact, handheld real-time spectrum analyzer covering 9 kHz to 9 GHz with Type N connector. Ruggedized for field use, it delivers RF performance designed for testing modern wireless technologies including 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar applications.
Key Features
- Frequency coverage: 9 kHz to 9 GHz
- DANL: -164 dBm (with preamp)
- Third Order Intercept (TOI): +20 dBm (typical)
- 100 MHz analysis bandwidth
- Phase noise: -110 dBc/Hz at 100 kHz offset (typical)
- Demodulation: 5G NR, LTE FDD, RF, and modulation quality analysis
- Resolution bandwidth: 1 Hz to 10 MHz
- RTSA bandwidth: 22 MHz standard, up to 110 MHz optional
- Amplitude accuracy: ±0.5 dB (typical)
- IQ capture and streaming for advanced signal analysis
- Spectrogram display for spectrum monitoring
Applications
- 5G network testing and validation
- LTE and cellular system characterization
- Wireless backhaul link analysis
- Aerospace and defense RF testing
- Satellite system signal analysis
- Radar signal monitoring and interference detection
Included Accessories
- Ethernet Cable (7 ft)
- Stylus and Shoulder Strap
- Li-Ion Battery and AC/DC Power Supply
- USB Cable (USB 3.0 Type-A to Type-C, 1 m)
- SMB to BNC Adapter (qty 3)
- BNC to SMB Cable (1 m)
- Certificate of Calibration and Conformance
Specifications
| Frequency Range | 8.0 - 15.0 GHz |
| Maximum Frequency | 9 GHz |
| Tracking Generator | No |
| Preamplifier | Yes |
| Noise Floor | -142 dBm |
| Series | Field Master Pro Series |
| Battery Life | 2 hrs. |
| Connector Type | N(f) |
| Display | 10.1" Capacitive Touchscreen |
| Includes | Ethernet Cable, Stylus, Shoulder Strap, Li-Ion Battery, AC/DC Power Supply, USB Cable, SMB Plug to BNC Jack Adapter, BNC to SMB Cable, Certificate of Calibration and Conformance |
| Interface | USB, Ethernet |
| Minimum Frequency | 9 kHz |
| Type | Handheld |
