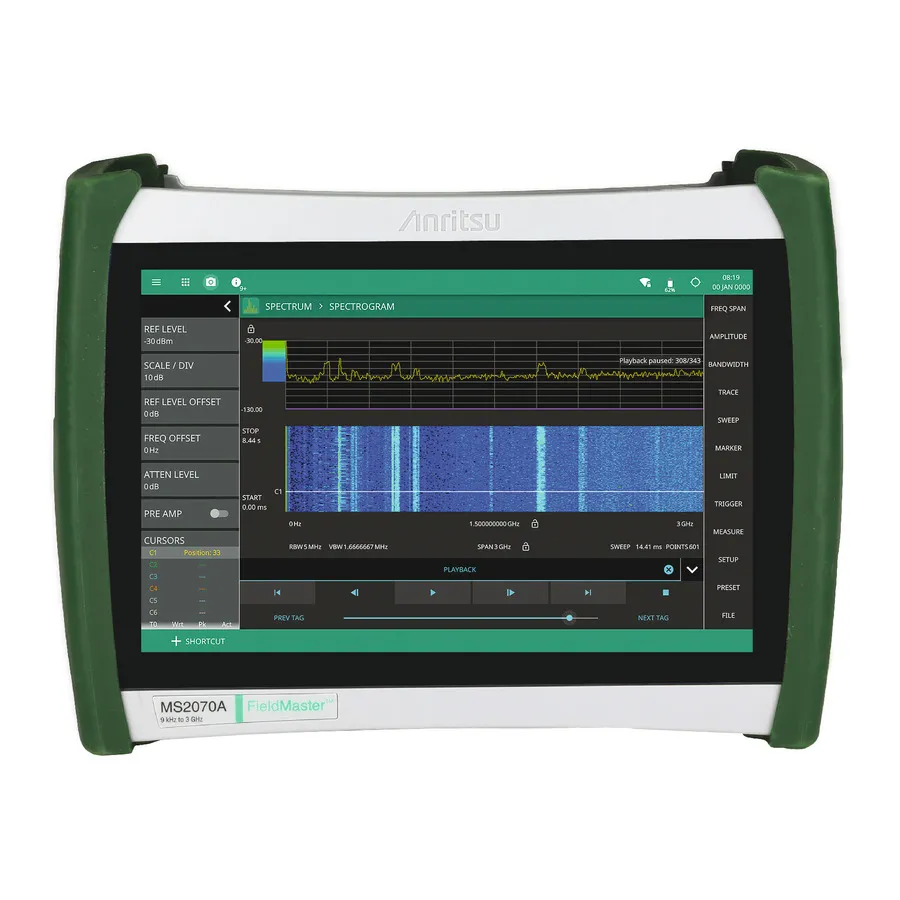

Anritsu MS2070A/703 Spectrum Analyzer, 9 kHz to 3 GHz
Request a quote
Anritsu MS2070A/703 is a handheld spectrum analyzer offering 9 kHz to 3 GHz coverage with interference analysis, power meter, and AM/FM modulation measurements.
Product details
| Model | MS2070A/703 |
| Manufacturer | Anritsu |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2070A/703 is a handheld spectrum analyzer designed for RF measurements in field and laboratory environments. With coverage from 9 kHz to 3 GHz, it provides dynamic range exceeding 105 dB at 2.4 GHz and can capture HF, VHF, and UHF signals common in commercial and military applications.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Spectrum analysis with sweep speeds up to 32 GHz/s
- Interference analysis and identification
- True power meter functionality
- AM/FM modulation quality measurements
- Coverage mapping capability
- 10-inch high-resolution touch screen
- Multiple language support
- Ethernet and USB (USBTMC) connectivity
- Built-in PDF and HTML report generation
- Optional preamplifier with typical DANL of -167 dBm
Applications
- RF signal measurement and analysis
- Interference hunting and mitigation
- Broadcast transmitter analysis
- Network coverage mapping
- General-purpose lab and field measurements
Included Accessories
- Soft carrying case (2000-2071-R)
- 94 Wh Li-ion battery (633-79)
- AC/DC power adapter (40-204-R)
- 2 m Ethernet cable (2000-1371-R)
- 1 m USB 3.0 Type-C cable (2000-1859-R)
- 1 m SMA(m) to BNC(m) cable (806-442-R)
- 3 x SMA(m) to BNC(f) adapters (2000-2054-R)
- Certificate of Calibration and Conformance
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -140 dBm |
| Series | Field Master Series |
| Battery Life | 3 hrs. |
| Connector Type | N(f) |
| Display | 10.1" Multi-touch |
| Includes | Soft case, Ethernet cable, USB cable, SMA(m) to BNC(m) cable, SMA(m) to BNC(f) adapter, AC/DC power adapter, Li-ion battery, Certificate of calibration and conformance |
| Interface | USB, Ethernet |
| Minimum Frequency | 9 kHz |
| Type | Handheld |
