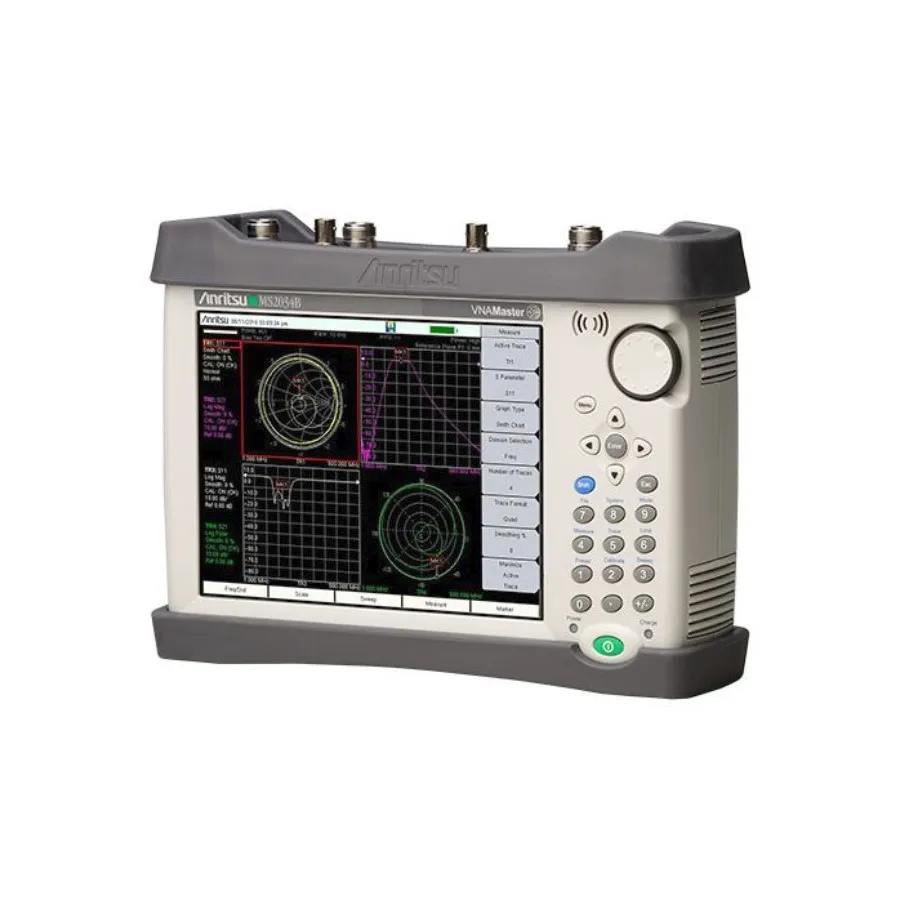

Anritsu MS2034B/0015 VNA Master
Request a quote
Anritsu MS2034B/0015 combines 2-port VNA (500 kHz to 4 GHz) with spectrum analyzer (9 kHz to 4 GHz), plus Vector Voltmeter mode for precise cable phase matching.
Product details
| Model | MS2034B/0015 |
| Manufacturer | Anritsu |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2034B/0015 is a handheld vector network analyzer with integrated spectrum analyzer capability. It combines 2-port, 1-path VNA (500 kHz to 4 GHz) with spectrum analysis (9 kHz to 4 GHz) in a single instrument featuring a resistive touchscreen interface. The MS2034B/0015 includes Vector Voltmeter mode (Option 15) for precise cable phase matching and fault location in field environments.
Key Features
- 2-port, 1-path Vector Network Analyzer (500 kHz to 4 GHz)
- Spectrum Analyzer (9 kHz to 4 GHz) with 95 dB dynamic range
- Vector Voltmeter mode for cable phase matching and fault detection
- 100 dB Transmission Dynamic Range in VNA mode
- Touchscreen resistive TFT display with intuitive GUI
- Excellent RF immunity
- Multiple detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: less than ±50 ppb with GPS enabled
- PIM Hunting capability for interference analysis
- 3-year standard warranty (battery 1-year)
Applications
- Base station installation and commissioning
- Wireless network infrastructure testing and maintenance
- Cable and antenna fault location
- Broadband and microwave backhaul system verification
- Field-based RF/microwave system troubleshooting
Specifications
| Frequency Range | 500 kHz |
| Maximum Frequency | 4 GHz |
| Noise Floor | -162 dBm |
| Series | MS2034B Series |
