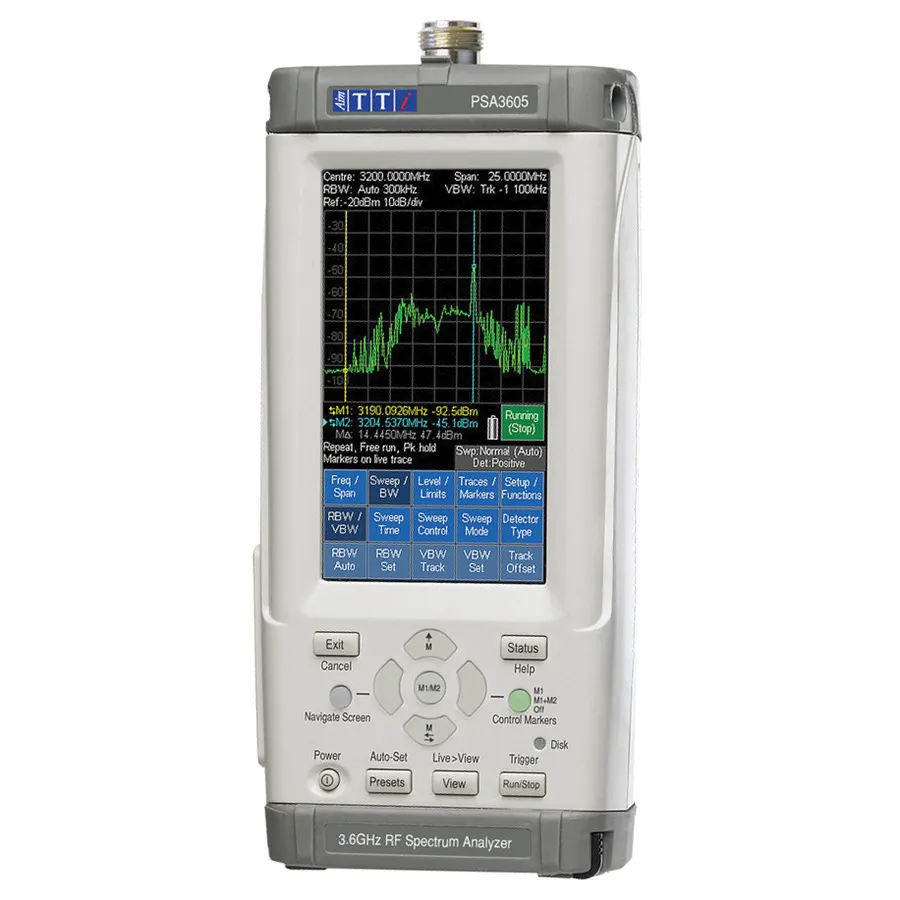

Aim TTi PSA3605 Handheld RF Spectrum Analyzer
Request a quote
Aim TTi PSA3605 is a handheld RF spectrum analyzer with 10MHz–3.6GHz coverage, -120dBm noise floor, 4.3-inch TFT display, and advanced measurement capabilities for professional field use.
Product details
| Model | PSA3605 |
| Manufacturer | Aim TTi |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Aim TTi PSA3605 is an advanced handheld RF spectrum analyzer from the PSA Series 5, designed for comprehensive frequency measurements up to 3.6GHz. With a lower noise floor of -120dBm, it provides enhanced sensitivity for detecting weak signals. The 4.3-inch TFT LCD display delivers clear visualization of spectrum data, while the compact form factor maintains portability essential for field applications.
Key Features
- Frequency range: 10MHz to 3.6GHz
- Resolution bandwidths from 300Hz to 10MHz (1:3:10 ratio)
- Noise floor: -120dBm typical
- 4.3-inch TFT LCD display
- Measurements in dBm, dBμV, mV, or μW
- Zero span mode with AM and FM audio demodulation
- Trace modes: normal, peak hold, and trace average
- Dual markers with absolute and difference readout
- Frequency counter with high resolution
- Auto-find feature for signal detection
- Data storage with 1.8GB capacity
- USB interfaces for connectivity and data transfer
- Rugged design for field use
Applications
- High-frequency RF signal analysis and troubleshooting
- Microwave system measurements
- Frequency verification for broadband systems
- Professional field testing and maintenance
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3.6 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -120 dBm |
| Series | PSA Series 5 |
| Battery Life | 3 hrs. |
| Connector Type | N |
| Display | 4.3" TFT LCD |
| Includes | Universal voltage mains adaptor/charger. USB lead. Spare stylus. BNC converter. Multi-language Short Guide. Full users manual (English only). Support CD of PDF versions of manuals/software. |
| Interface | USB |
| Memory | 1.8 GB |
| Minimum Frequency | 10 MHz |
| Type | Handheld |
| Warranty | 3 Years |
