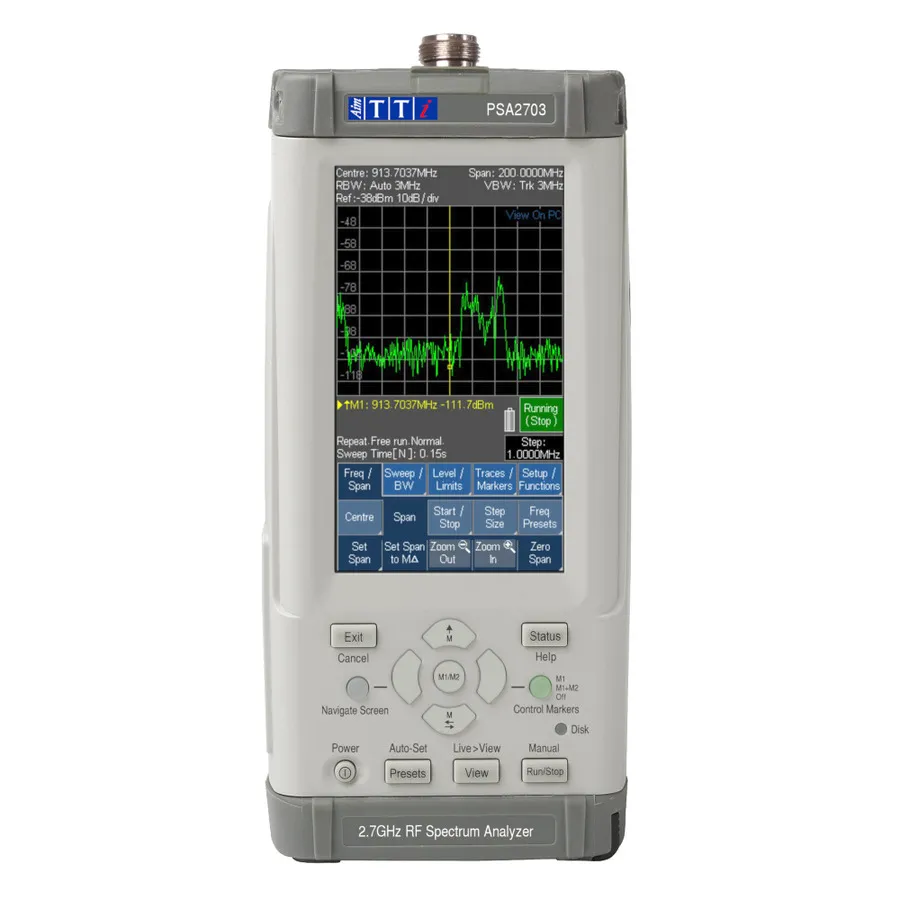

Aim TTi PSA2703USC Handheld RF Spectrum Analyzer
Request a quote
Aim TTi PSA2703USC is a handheld RF spectrum analyzer with 2.7GHz coverage, -115dBm noise floor, U01 firmware upgrade, travel case, and complete accessory kit for professional field use.
Product details
| Model | PSA2703USC |
| Manufacturer | Aim TTi |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Aim TTi PSA2703USC is a complete spectrum analysis solution for field professionals. This model includes the U01 firmware upgrade with advanced features such as limit line patterns, data logging, sweep triggers, and compensation tables. The package comes with a travel case, vehicle charger, and antenna, providing everything needed for portable RF measurements up to 2.7GHz. The instrument combines performance with portability in a ruggedized package.
Key Features
- Frequency range: 1MHz to 2.7GHz
- Resolution bandwidths from 300Hz to 10MHz (1:3:10 ratio)
- Noise floor: -115dBm typical at -40dBm reference level
- Measurements in dBm, dBμV, mV, or μW
- U01 firmware with data logging and limit patterns
- Zero span mode with AM and FM audio demodulation
- Trace modes: normal, peak hold, and trace average
- Live, View, and Reference traces
- Dual markers with difference values
- Smart marker movement with peak tracking
- Frequency counter with 10Hz resolution
- Auto-find feature for signal detection
- Unlimited storage for waveforms and setups
- USB interfaces for data transfer and PC connection
- Battery life: up to 6 hours
- Weight: 0.58 kg
Applications
- Field RF spectrum measurement and analysis
- Frequency and signal monitoring
- Wireless system troubleshooting
- Equipment calibration and verification
Included Accessories
- U01 Firmware Upgrade (pre-installed)
- PSA-SC2 Travel Case
- PSA-ANT2 Telescopic Antenna
- PSA-VC Vehicle Charger
- Universal Voltage Adapter/Charger
- USB Cable
- Spare Stylus
- BNC Converter for Trigger Input
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 2.7 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -115 dBm |
| Series | PSA Series 3 |
| Battery Life | 6 hrs. |
| Connector Type | N |
| Display | 4.3" TFT LCD |
| Includes | Firmware Upgrade U01 (installed), Telescopic Antenna WB-ANT, Vehicle Charger PSA-VC, Travel Case PSA-SC |
| Interface | USB |
| Memory | 1.8 GB |
| Minimum Frequency | 1 MHz |
| Type | Handheld |
