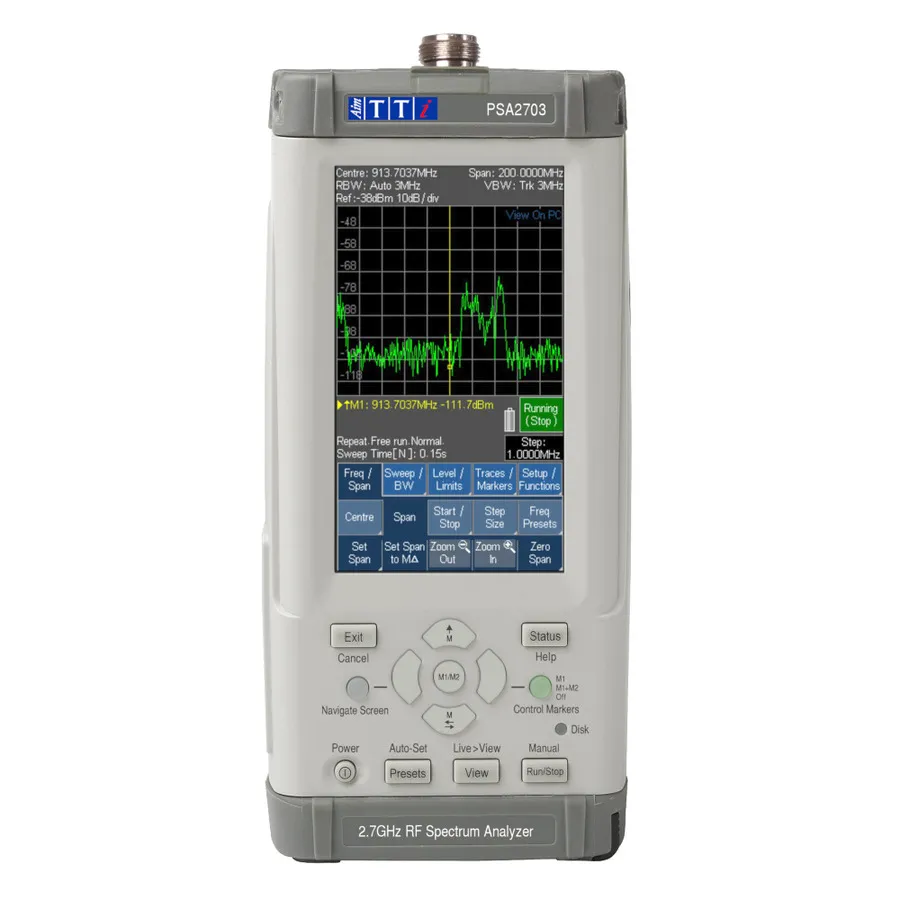

Aim TTi PSA2703 Handheld RF Spectrum Analyzer
Request a quote
Aim TTi PSA2703 is a handheld RF spectrum analyzer covering 1MHz–2.7GHz with -115dBm noise floor, dual trace display, and comprehensive marker functionality for field measurements.
Product details
| Model | PSA2703 |
| Manufacturer | Aim TTi |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Aim TTi PSA2703 is a lightweight, handheld RF spectrum analyzer for professional field measurements. It covers 1MHz to 2.7GHz with a typical noise floor of -115dBm. The 4.3-inch TFT LCD display features a three-row hierarchical menu system for rapid access to all features. The instrument provides rapid startup with the first sweep available in under 2 seconds, making it ideal for quick signal assessments in the field.
Key Features
- Frequency range: 1MHz to 2.7GHz
- Resolution bandwidths from 300Hz to 10MHz (1:3:10 ratio)
- Noise floor: -115dBm typical at -40dBm reference level
- Measurements in dBm, dBμV, mV, or μW
- Zero span mode with AM and FM audio demodulation
- Trace modes: normal, peak hold, and trace average
- Live, View, and Reference traces in contrasting colors
- Dual markers with absolute and difference value readout
- Smart marker movement with optional peak tracking
- Frequency counter with 10Hz resolution
- Auto-find feature for automatic parameter setup
- Unlimited storage for waveforms, setups, and screen images
- USB interfaces for Flash drive and PC connection
- Battery life: up to 6 hours continuous operation
- Weight: 0.58 kg
Applications
- RF signal monitoring and spectrum analysis
- Frequency verification in wireless systems
- Field troubleshooting and maintenance
- Signal characterization and testing
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 2.7 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -115 dBm |
| Series | PSA Series 3 |
| Battery Life | 6 hrs. |
| Connector Type | N |
| Display | 4.3" TFT LCD |
| Includes | Universal voltage mains adaptor/ charger, USB lead, Spare stylus, BNC converter, Safety documentation |
| Interface | USB |
| Memory | 1.8 GB |
| Minimum Frequency | 1 MHz |
| Type | Handheld |
