Aim TTi PSA1303USC Handheld RF Spectrum Analyzer
Request a quote
Aim TTi PSA1303USC is a lightweight handheld RF spectrum analyzer with 1MHz–1.3GHz coverage, -115dBm noise floor, and up to 6-hour battery operation.
Product details
| Model | PSA1303USC |
| Manufacturer | Aim TTi |
| Category | Handheld Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Aim TTi PSA1303USC is a lightweight, handheld RF spectrum analyzer designed for field use. It covers the 1MHz to 1.3GHz frequency range with a typical noise floor of -115dBm. The instrument features a 4.3-inch TFT display with intuitive hierarchical menu system and is housed in a ruggedized case with removable sunscreen protector. With up to 6 hours of continuous battery operation and weighing only 0.58 kg, it provides exceptional portability without sacrificing functionality.
Key Features
- Frequency range: 1MHz to 1.3GHz
- Resolution bandwidths from 300Hz to 10MHz (1:3:10 ratio)
- Noise floor: -115dBm typical at -40dBm reference level
- Measurements in dBm, dBμV, mV, or μW
- Zero span mode with AM and FM audio demodulation
- Trace modes: normal, peak hold, and trace average
- Dual markers with absolute and difference value readout
- Smart marker movement with optional peak tracking
- Frequency counter with 10Hz resolution
- Auto-find feature automatically sets parameters for strongest signals
- Unlimited storage for waveforms, setups, and screen images
- USB interfaces for Flash drive and PC connection
- Battery life: up to 6 hours continuous operation
- Weight: 0.58 kg
Applications
- RF signal monitoring and troubleshooting in field environments
- Frequency verification and spectrum analysis for wireless communications
- Equipment service and maintenance
- Educational and technical training

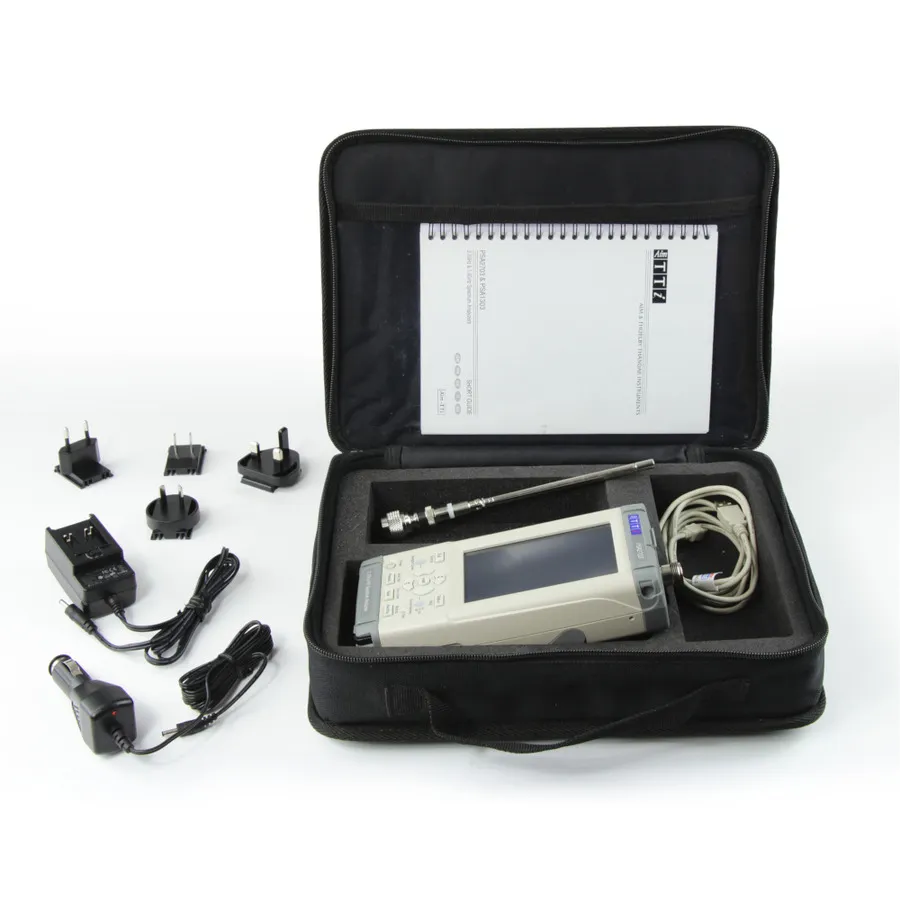

Included Accessories
- U01 Firmware Upgrade (installed)
- Universal Voltage Adapter/Charger
- PSA-VC Vehicle Charger
- PSA-SC2 Travel Case
- PSA-ANT2 Antenna
- USB Cable
- Spare Stylus
- BNC Converter for Trigger Input
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 1.3 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -115 dBm |
| Series | PSA Series 3 |
| Battery Life | 6 hrs. |
| Connector Type | N |
| Display | 4.3" TFT LCD |
| Includes | Universal voltage mains adaptor/ charger, USB lead, Spare stylus, BNC converter, Safety documentation |
| Interface | USB |
| Memory | 1.8 GB |
| Minimum Frequency | 1 MHz |
| Product Weight | 580 g. |
| Type | Handheld |
