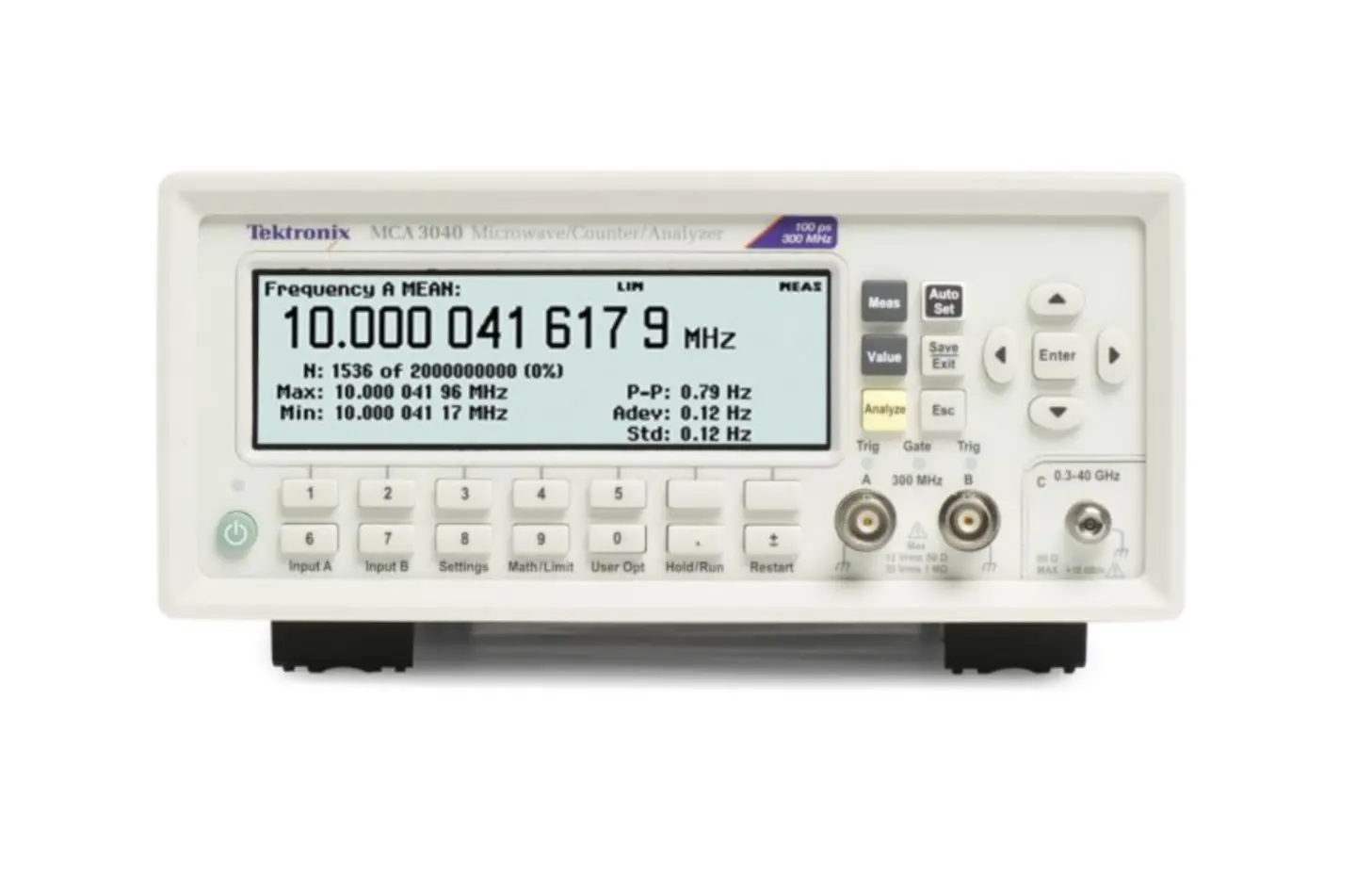

Tektronix MCA3040 Microwave Counter
Request a quote
Tektronix MCA3040 microwave counter delivers up to 40 GHz frequency measurement with 3 input channels, 100 ps resolution, and integrated power meter.
Product details
| Model | MCA3040 |
| Manufacturer | Tektronix |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Tektronix MCA3040 is a microwave counter/analyzer offering frequency measurements up to 40 GHz. With integrated power meter, three input channels, and multiple automated measurement modes, it provides comprehensive RF signal analysis for test and measurement applications requiring high resolution and fast processing.
Key Features
- 3 Input Channels with 300 MHz (Channels A and B) and 40 GHz (Channel C) capability
- 100 ps single-shot time resolution
- 12 digits/second frequency resolution with 14-digit display
- Power range: -35 dBm to +10 dBm
- 3 mV voltage resolution
- Integrated power meter with additional timer/counter channels
- Automated measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall Time, Phase Angle, Duty Cycle, voltage measurements
- USB and GPIB interfaces
- Optional high-stability oven time base
- Optional TimeView software for modulation domain analysis
Applications
- RF and microwave signal characterization
- Frequency and timing measurements
- Phase and modulation analysis
- Component and system testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
