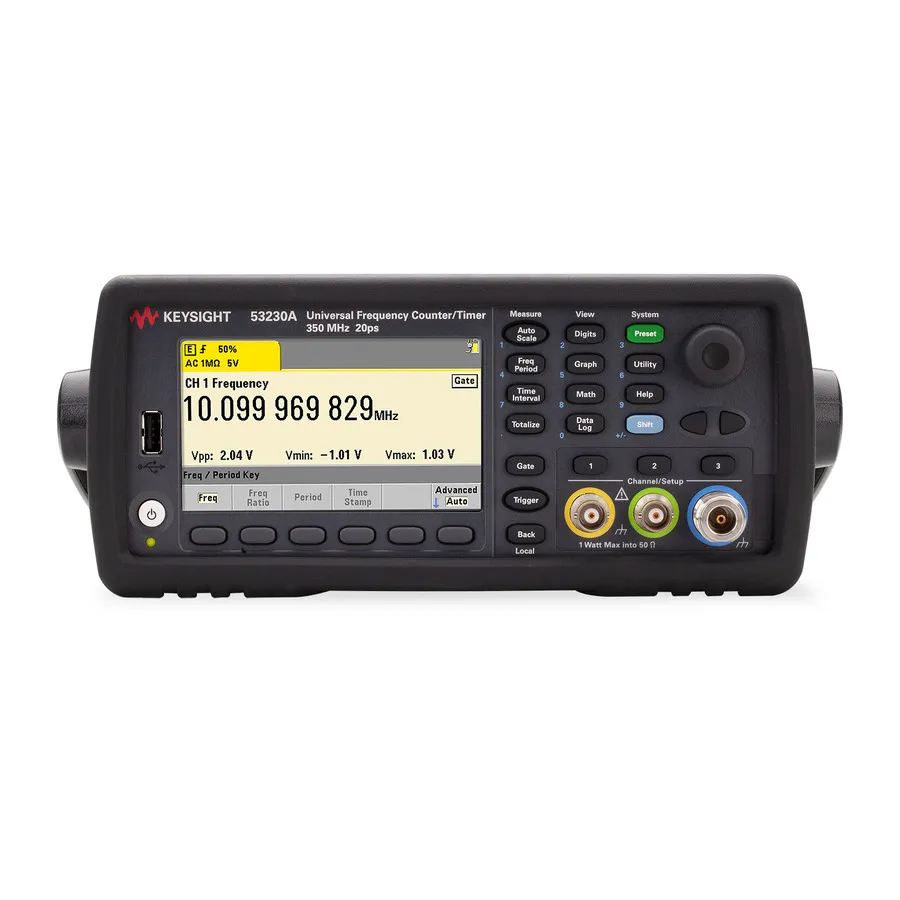

Keysight 53230A/115/202 Universal Frequency Counter/Timer
Request a quote
Keysight 53230A/115/202 universal frequency counter with dual 350 MHz channels, 100 ps resolution, 15 GHz RF input, and LAN/USB/GPIB connectivity.
Product details
| Model | 53230A/115/202 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/115/202 is a universal frequency counter and timer featuring dual 350 MHz baseband channels with a 15 GHz RF microwave input. This configuration provides high-frequency RF measurement capability combined with precise timing measurements, making it ideal for RF and microwave laboratory, production, and research applications.
Key Features
- Two 350 MHz baseband input channels
- 15 GHz RF microwave input with front Type N connector (Option 115/202)
- 12 digits per second resolution and 100 ps single-shot time resolution
- Up to 75,000 frequency and 90,000 time interval readings per second
- 1M reading memory and USB Flash storage
- LXI-C/Ethernet LAN, USB, and GPIB connectivity
- Multiple measurement modes: frequency, period, ratio, voltage, time interval, pulse width, duty cycle, phase
- Built-in analysis: datalog with trend plot, cumulative histogram, math analysis and statistics
- Optional battery for portable operation and timebase accuracy
- BenchVue software license included for instrument control and automation
Applications
- High-frequency RF and microwave measurements
- Production and quality assurance testing
- Frequency and timing verification
- Laboratory and research applications
Specifications
| Frequency | 15GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 20ps |
| Special Features | 15GHz Microwave Input, Microwave Input - Front Type N |
