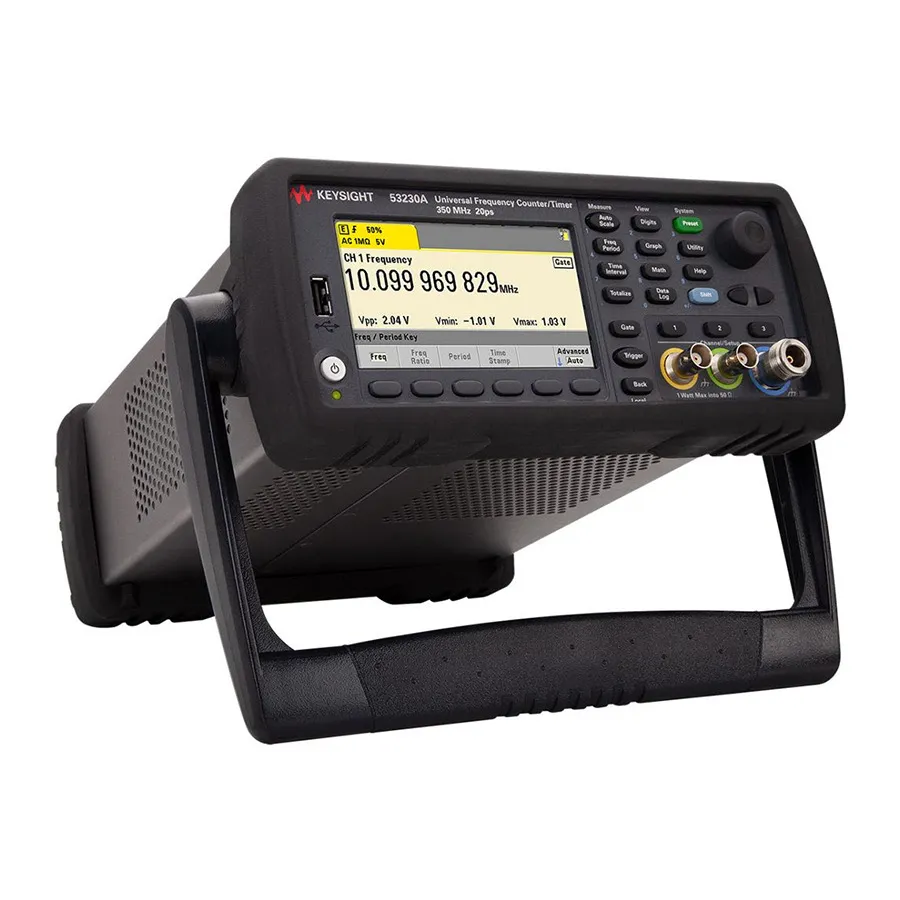

Keysight 53230A/115/201/203 Universal Counter/Timer
Request a quote
Keysight 53230A/115/201/203 universal frequency counter with 350 MHz baseband, 15 GHz RF input, rear panel SMA connector, and flexible multi-channel connectivity.
Product details
| Model | 53230A/115/201/203 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/115/201/203 is a universal frequency counter and timer from the 53200A series, configured with 15 GHz RF microwave measurement capability and flexible rear panel connectivity. It provides precise frequency and timing measurements with both baseband and microwave channels, serving demanding laboratory, production, and research applications.
Key Features
- Two 350 MHz baseband input channels (front and rear)
- 15 GHz microwave RF input on rear panel SMA connector (Option 115/203)
- Up to 12 digits per second resolution and 20 ps single-shot time interval accuracy
- Up to 75,000 frequency and 90,000 time interval readings per second
- 1M reading memory and USB Flash storage
- LXI-C/Ethernet LAN, USB, and GPIB connectivity
- Comprehensive measurements: frequency, period, ratio, voltage, time interval, pulse width, duty cycle, phase, totalize
- Built-in analysis capabilities: modulation domain analysis, pulse/burst measurement, datalog, histogram, statistics
- Optional battery for portable use and timebase stability
Applications
- High-frequency RF and microwave measurements
- Precision timing and synchronization
- Production test and quality assurance
- Laboratory and research applications
Specifications
| Baseband Frequency | 350 MHz |
| RF Microwave Channel | 15 GHz |
| Resolution | 12 digits/sec |
| Time Interval Resolution | 20 ps |
| Frequency Measurement Rate | Up to 75,000 readings/sec |
| Time Interval Rate | Up to 90,000 readings/sec |
| Memory | 1M readings + USB Flash |
| Connectivity | LXI-C/Ethernet LAN, USB, GPIB |
| Input Channels | Two 350 MHz baseband (front/rear), 15 GHz RF rear SMA |
