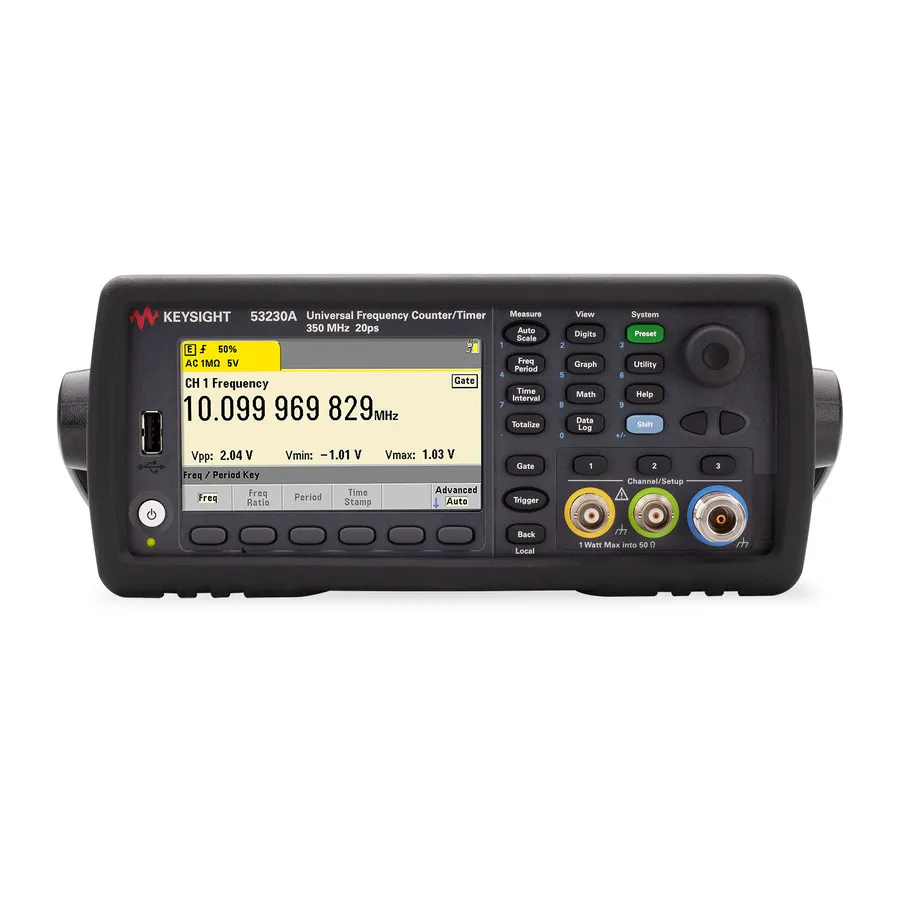

Keysight 53230A/106/202 Universal Frequency Counter/Timer
Request a quote
Keysight 53230A/106/202 universal frequency counter with dual 350 MHz channels, 100 ps resolution, 6 GHz RF input, and LAN/USB/GPIB connectivity.
Product details
| Model | 53230A/106/202 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/106/202 is a universal frequency counter and timer combining dual 350 MHz baseband channels with an optional 6 GHz RF microwave input. It delivers 12 digits per second resolution and 100 picosecond single-shot time interval accuracy for comprehensive frequency and timing measurements in RF and general laboratory applications.
Key Features
- Two 350 MHz baseband input channels
- Optional 6 GHz microwave input with front Type N connector (Option 106/202)
- 12 digits per second resolution and 100 ps single-shot time resolution
- Up to 75,000 frequency and 90,000 time interval readings per second
- 1M reading memory and USB Flash storage
- LXI-C/Ethernet LAN, USB, and GPIB connectivity
- Multiple measurement modes: frequency, period, ratio, voltage, time interval, pulse width, duty cycle, phase
- Advanced analysis: datalog with trend plot, cumulative histogram, built-in math and statistics
- Optional battery for portable operation and timebase accuracy
- BenchVue software license included for instrument automation
Applications
- RF and microwave signal characterization
- Production and quality assurance testing
- General-purpose frequency and timing measurements
- Laboratory and research applications
Specifications
| Frequency | 6GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 20ps |
| Special Features | 6GHz Microwave Input, Microwave Input - Front Type N |
