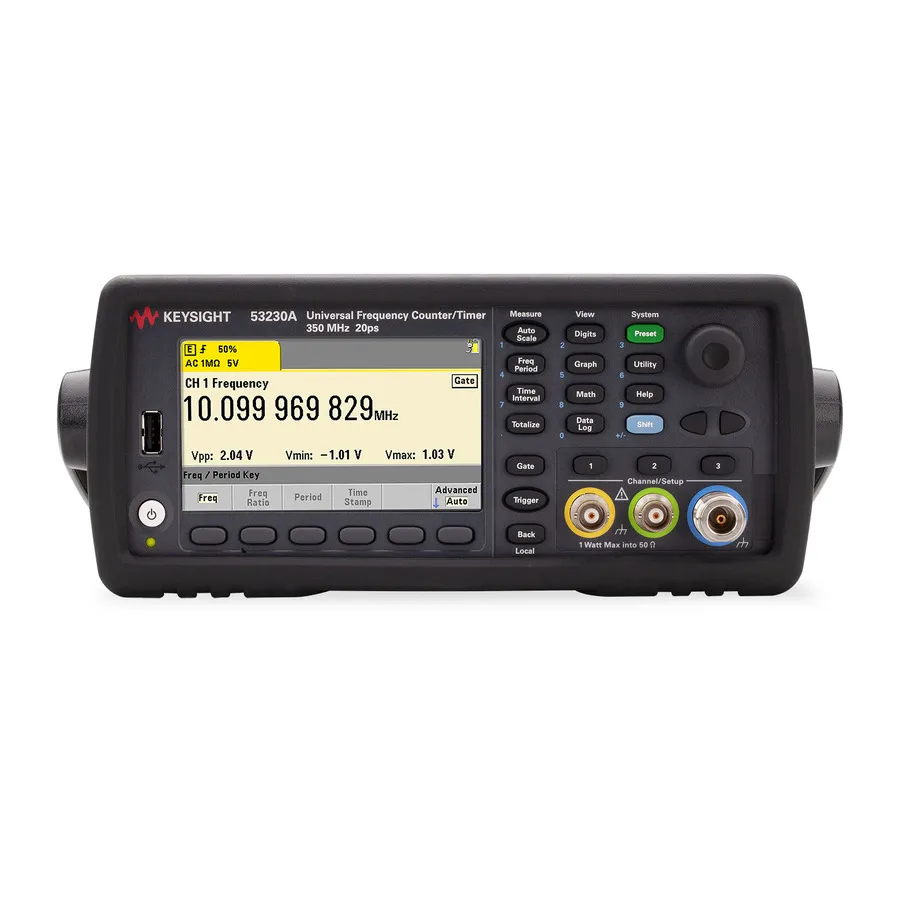

Keysight 53230A/106 Universal Counter/Timer
Request a quote
Keysight 53230A/106 universal frequency counter with 350 MHz baseband, 20 ps resolution, 6 GHz microwave channel, and LAN/USB/GPIB connectivity.
Product details
| Model | 53230A/106 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/106 is a universal frequency counter and timer that combines 350 MHz baseband measurement with an optional 6 GHz microwave channel. It provides up to 12 digits per second resolution and 20 picosecond single-shot time interval accuracy, making it suitable for precision frequency and time measurements in laboratory and production environments.
Key Features
- 350 MHz baseband frequency with optional 6 GHz microwave channel (Option 106)
- 12 digits per second resolution and 20 ps single-shot time resolution
- Up to 75,000 frequency and 90,000 time interval readings per second
- 1M reading memory and USB Flash storage
- Multiple connectivity: LXI-C/Ethernet LAN, USB, GPIB
- Comprehensive measurement modes: frequency, period, ratio, voltage, time interval, pulse width, duty cycle, phase
- Built-in analysis: modulation domain analysis (MDA), pulse/burst measurement, datalog, histogram, statistics
- Optional battery for portability and timebase stability
- Includes BenchVue software license for instrument control and automation
Applications
- RF and microwave frequency verification and testing
- Precision timing measurements and synchronization
- Production test and quality assurance
- Laboratory research and development
Specifications
| Frequency | 6GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 20ps |
| Special Features | 6GHz Microwave Input |
