Keysight 53230A/010/201 Universal Frequency Counter/Timer

Overview

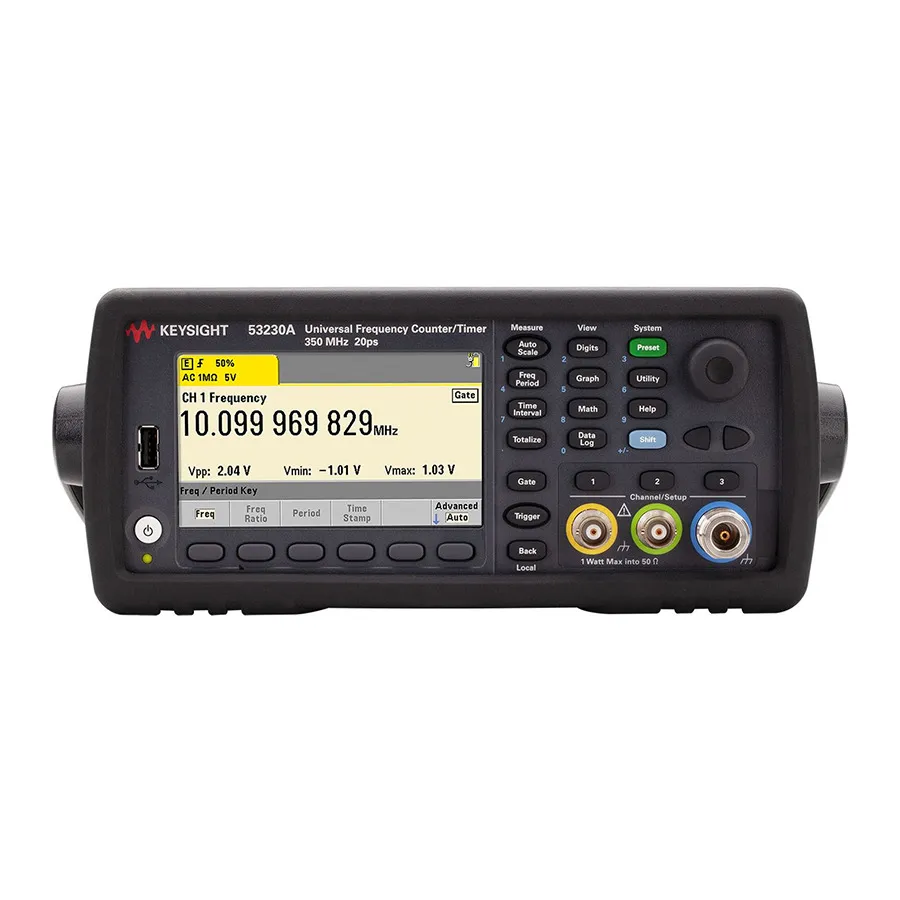

The Keysight 53230A/010/201 is a universal frequency counter and timer with dual 350 MHz baseband measurement channels and rear panel parallel inputs for flexible signal routing. It delivers 12 digits per second resolution and 20 ps time interval accuracy with an ultra-high-stability OCXO timebase. The instrument includes built-in analysis, graphing, and a BenchVue software license.

Key Features

• Two 350 MHz input channels plus optional third channel (6 GHz or 15 GHz microwave)
• Rear panel parallel inputs for baseband channel flexibility
• 12 digits/second frequency resolution with 20 ps time interval accuracy
• Ultra-high-stability OCXO timebase and optional battery backup
• Up to 75,000 (frequency) and 90,000 (time interval) readings per second
• Comprehensive measurement modes: frequency, period, ratio, time interval, pulse width, duty cycle, phase, totalize
• Continuous gap-free measurements with timestamps for modulation analysis
• Graphical analysis with trend plots and cumulative histograms
• 1M reading memory with USB Flash storage
• LXI-C/Ethernet, USB, and GPIB interfaces
• BenchVue software included

Applications

• RF and microwave frequency measurement and analysis
• Time interval and jitter characterization
• Phase and synchronization testing
• Manufacturing test and quality assurance
• Research and development
