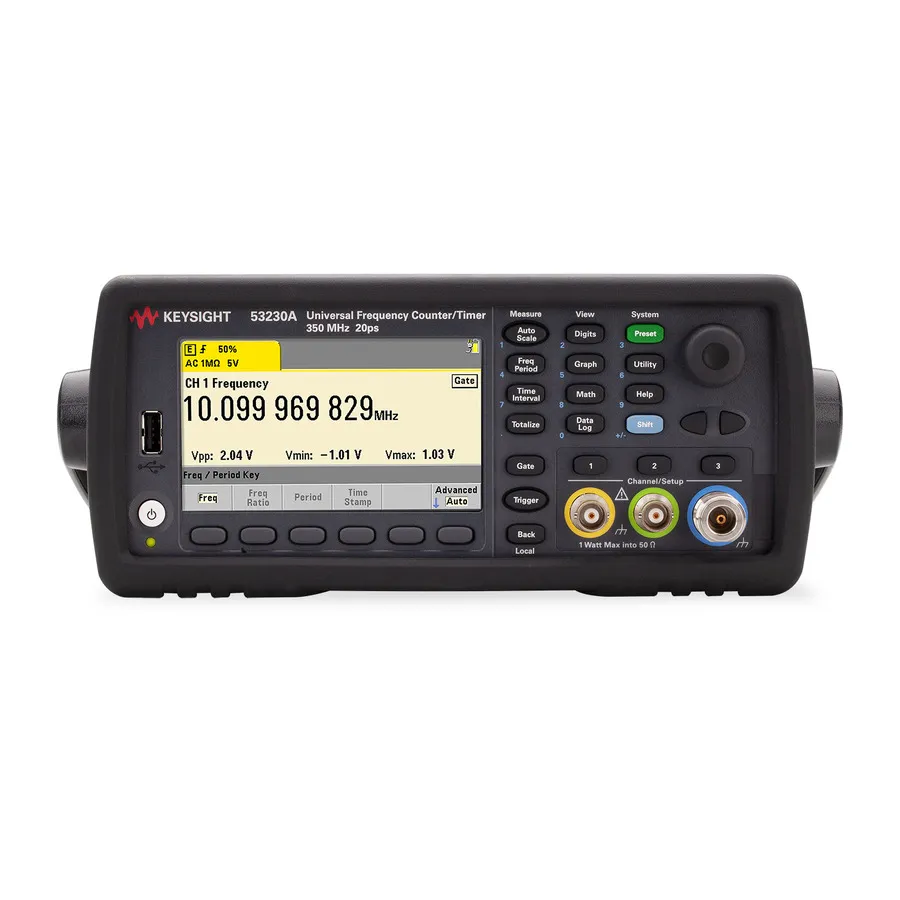

Keysight 53230A/010/115/203 Universal Frequency Counter/Timer
Request a quote
Keysight 53230A universal frequency counter/timer with 350 MHz and 15 GHz inputs, 12 digits/second resolution, OCXO timebase, and graphical analysis.
Product details
| Model | 53230A/010/115/203 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/010/115/203 is a universal frequency counter and timer offering 350 MHz baseband measurement capability plus 15 GHz microwave input. It delivers 12 digits per second resolution and 20 ps time interval accuracy with an ultra-high-stability OCXO timebase. The instrument includes built-in analysis, graphing, and a BenchVue software license.
Key Features
- Two 350 MHz input channels plus 15 GHz microwave input capability
- 12 digits/second frequency resolution with 20 ps time interval accuracy
- Ultra-high-stability OCXO timebase and optional battery backup
- Up to 75,000 (frequency) and 90,000 (time interval) readings per second
- Comprehensive measurement modes: frequency, period, ratio, time interval, pulse width, duty cycle, phase, totalize
- Graphical analysis with trend plots and cumulative histograms
- 1M reading memory with USB Flash storage
- LXI-C/Ethernet, USB, and GPIB interfaces
- BenchVue software included
Applications
- RF and microwave frequency measurement and analysis
- Time interval and jitter characterization
- Phase and synchronization testing
- Manufacturing test and quality assurance
- Research and development
Specifications
| Frequency | 15GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 20ps |
| Special Features | OCXO Timebase, 15GHz Microwave Input, Rear Panel SMA(f) |
