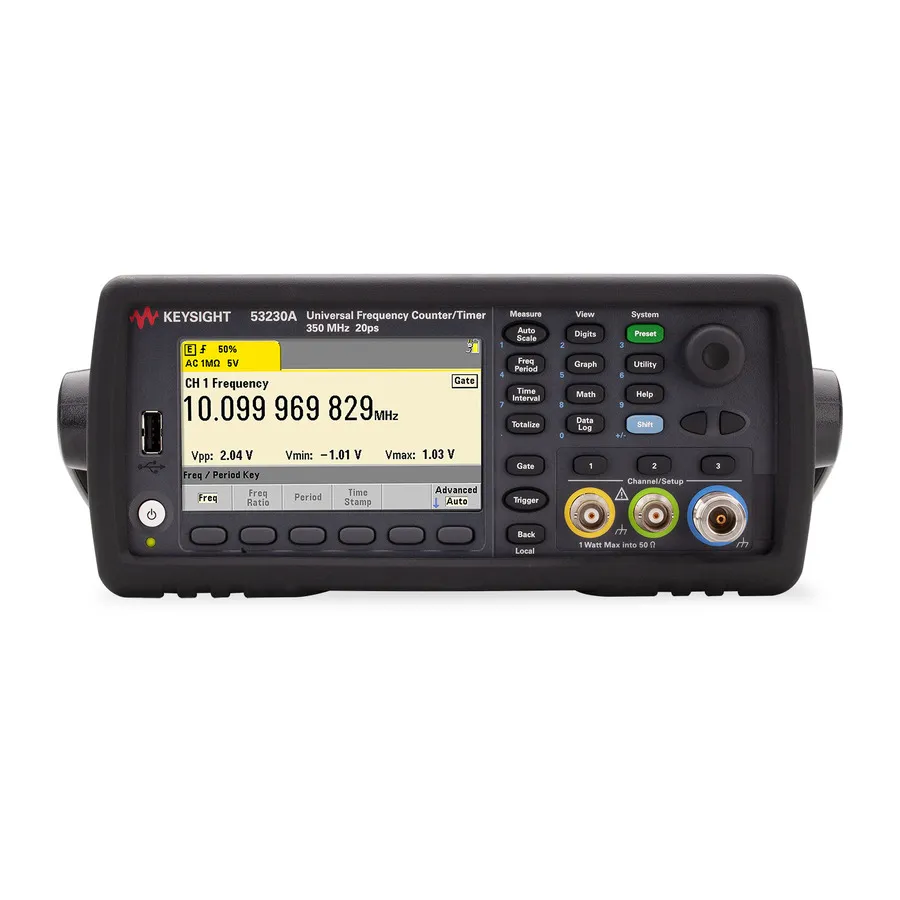

Keysight 53230A/010/106/203 Universal Frequency Counter/Timer
Request a quote
Keysight 53230A universal frequency counter/timer with 350 MHz and 6 GHz measurement inputs, 12 digits/second resolution, OCXO timebase, and graphical analysis.
Product details
| Model | 53230A/010/106/203 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53230A/010/106/203 is a universal frequency counter and timer offering 350 MHz baseband measurement capability plus 6 GHz microwave input. It delivers 12 digits per second resolution and 20 ps time interval accuracy with an ultra-high-stability OCXO timebase. The instrument includes built-in analysis, graphing, and a BenchVue software license.
Key Features
- Two 350 MHz input channels plus 6 GHz microwave input capability
- 12 digits/second frequency resolution with 20 ps time interval accuracy
- Ultra-high-stability OCXO timebase and optional battery backup
- Up to 75,000 (frequency) and 90,000 (time interval) readings per second
- Comprehensive measurement modes: frequency, period, ratio, time interval, pulse width, duty cycle, phase, totalize
- Graphical analysis with trend plots and cumulative histograms
- 1M reading memory with USB Flash storage
- LXI-C/Ethernet, USB, and GPIB interfaces
- BenchVue software included
Applications
- RF and microwave frequency measurement and analysis
- Time interval and jitter characterization
- Phase and synchronization testing
- Manufacturing test and quality assurance
- Research and development
Specifications
| Frequency | 6GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 20ps |
| Special Features | OCXO Timebase, 6GHz Microwave Input, Rear Panel SMA(f) |
