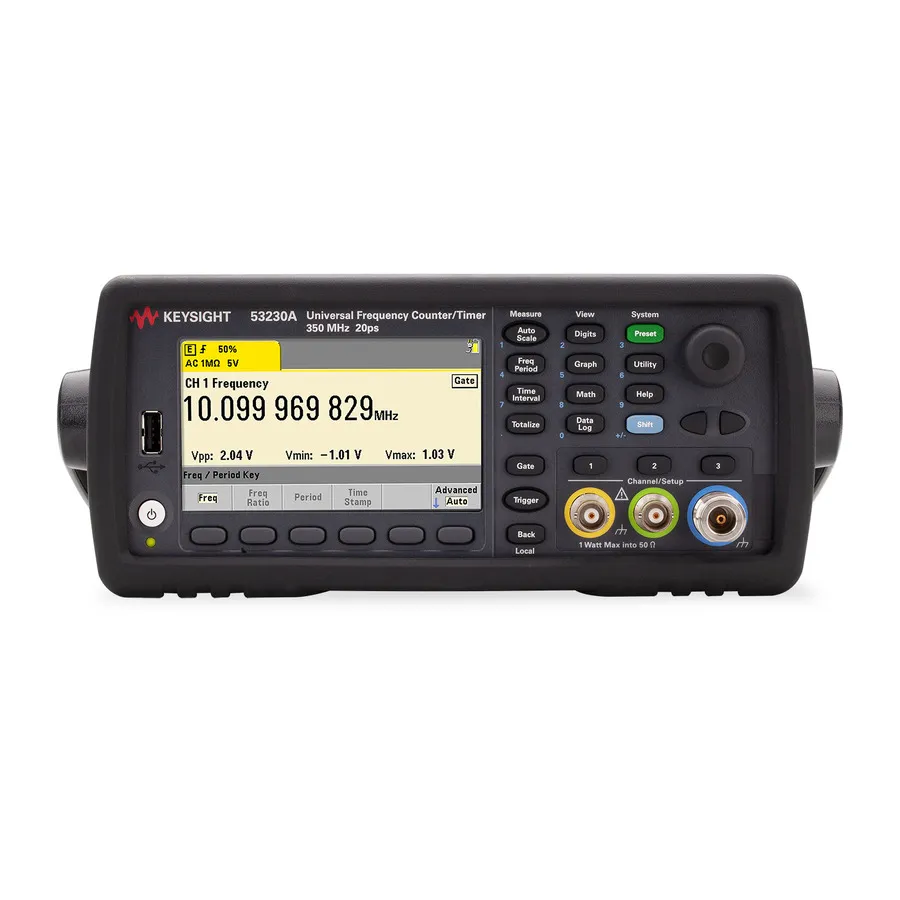

Keysight 53230A/010/106/201 Universal Frequency Counter Timer

Overview

The Keysight 53230A/010/106/201 is an RF universal frequency counter/timer configured with an ultra-high-stability OCXO timebase, 6 GHz microwave input, and rear panel parallel input connectors for the baseband channels. This configuration provides maximum flexibility for integration into test systems, allowing simultaneous access to signals from both front and rear panels. With 100 ps time resolution and comprehensive analysis capabilities, it supports advanced frequency and timing measurements across multiple channels.

Key Features

• Two 350 MHz baseband channels with front and rear panel access (Option 201)
• 6 GHz microwave input channel (Option 106)
• 100 ps single-shot time resolution
• Ultra-high-stability OCXO timebase
• Up to 12 digits/sec and 75,000 frequency readings/sec
• Multiple measurement modes: frequency, period, ratio, time interval, pulse width, duty cycle, and phase
• Datalog trend plot and cumulative histogram analysis
• Built-in math analysis and statistics
• 1M reading memory with USB Flash storage
• LXI-C/Ethernet, USB, and GPIB interfaces
• Optional battery for portable measurements and timebase stability
• Includes BenchVue software license

Applications

• Multi-channel frequency and timing measurements
• RF and microwave signal characterization
• Automated test system integration with flexible channel routing
• Pulse and burst analysis with rear panel connectivity
• Long-term trend monitoring and data logging
