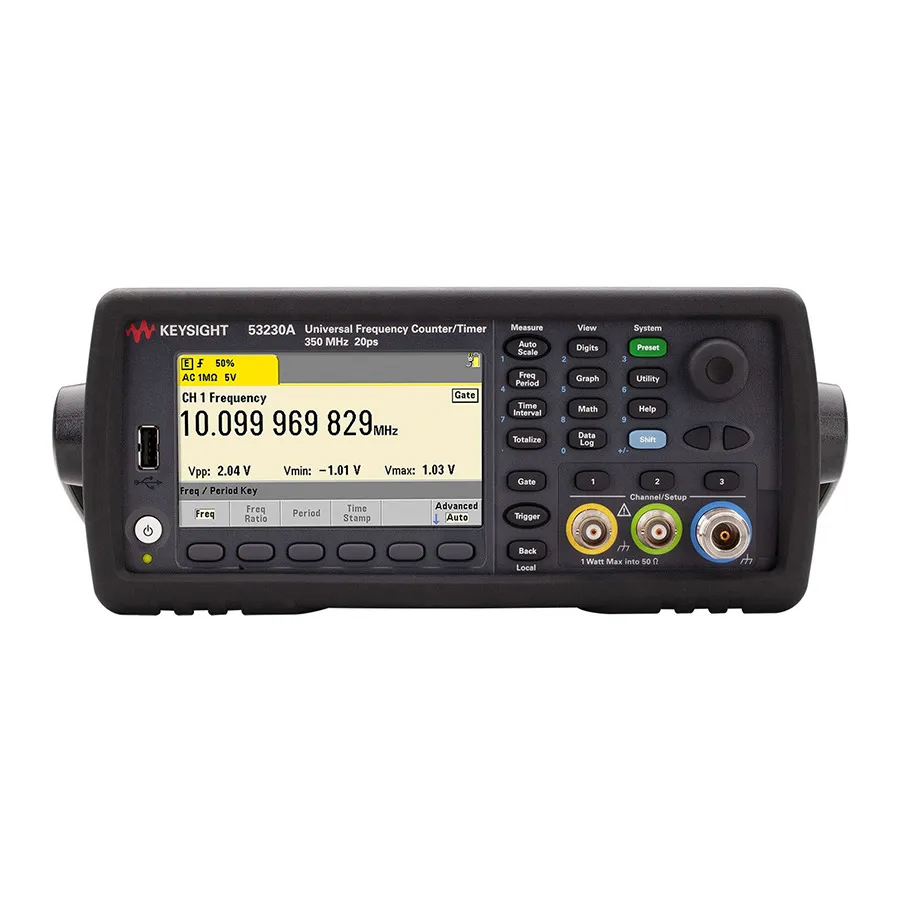

Keysight 53230A/010 Universal Frequency Counter Timer

Overview

The Keysight 53230A/010 is a universal frequency counter and timer from the 53200 Series, featuring an ultra-high-stability OCXO timebase. It delivers accurate time and frequency measurements with 350 MHz baseband frequency, 20 ps single-shot time resolution, and measurement rates up to 12 digits per second. The instrument provides advanced analysis capabilities including modulation domain analysis, pulse/burst measurements, and datalog trending for comprehensive signal characterization.

Key Features

• 350 MHz baseband frequency with optional 6 GHz or 15 GHz microwave channels
• 20 ps single-shot time resolution for high-precision timing
• Ultra-high-stability OCXO timebase
• Up to 12 digits/sec and 75,000 frequency readings/sec
• Multiple measurement modes: frequency, period, ratio, time interval, pulse width, duty cycle, phase, and carrier analysis
• Basic modulation domain analysis (MDA) and timestamp functionality
• Continuous gap-free measurements with pulse/burst detection
• 1M reading memory with USB Flash storage and trend plot logging
• LXI-C/Ethernet, USB, and GPIB interfaces
• Optional battery for portable measurements and enhanced timebase accuracy
• Includes BenchVue software license for instrument control and test automation

Applications

• RF and microwave frequency and timing measurements
• Pulse and burst characterization in communication systems
• Phase and jitter analysis
• Modulation domain analysis for signal quality assessment
• Portable measurements with optional battery configuration

Included Accessories

• IEC power cord
• USB cable
• Documentation on CD with Keysight IO Library
• Calibration certificate
• Three-year warranty
