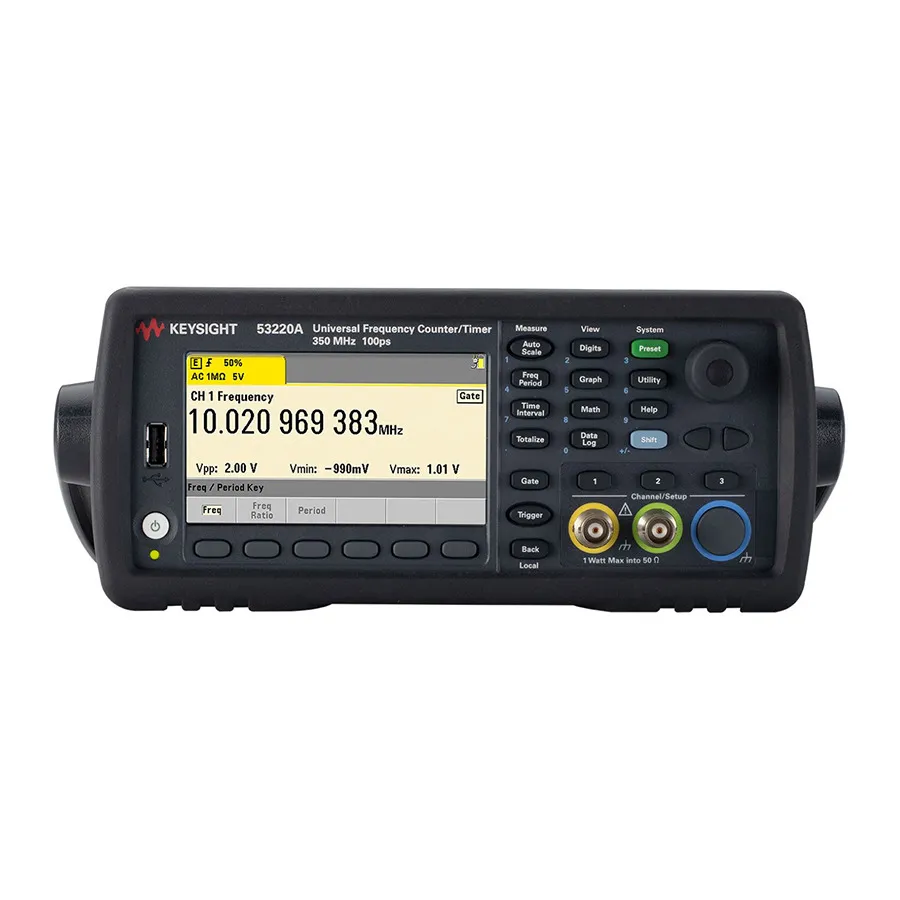

Keysight 53220A/201 Universal Frequency Counter/Timer
Request a quote
Keysight 53220A/201 is a 350 MHz universal frequency counter with rear panel inputs, 12-digit resolution, optional 6/15 GHz microwave, and LAN/USB/GPIB.
Product details
| Model | 53220A/201 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53220A/201 is a universal frequency counter/timer with 350 MHz baseband measurement capability and rear panel inputs for enhanced flexibility. It provides 12-digit resolution, optional 6 GHz or 15 GHz microwave channels, 1M reading memory, and comprehensive connectivity for demanding measurement applications.
Key Features
- 350 MHz baseband frequency with rear panel parallel inputs for baseband channels
- Optional 6 GHz or 15 GHz microwave channels available
- Up to 12 digits/second resolution with 100 ps single-shot time interval
- Up to 75,000 frequency and 90,000 time interval readings/second
- Comprehensive measurement functions: frequency, period, frequency ratio, voltage peak-to-peak, time interval, pulse width, rise/fall time, duty cycle, phase, totalize
- 1M reading memory and USB Flash storage capability
- Datalog trend plot and cumulative histogram analysis
- Built-in math analysis and statistics
- LXI-C/Ethernet LAN, USB, and GPIB connectivity
- Optional lithium ion battery for portable use
- BenchVue software license included
Specifications
| Frequency | 350 MHz |
| Number of Channels | Dual Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 100ps |
| Special Features | Rear Parallel Inputs |
