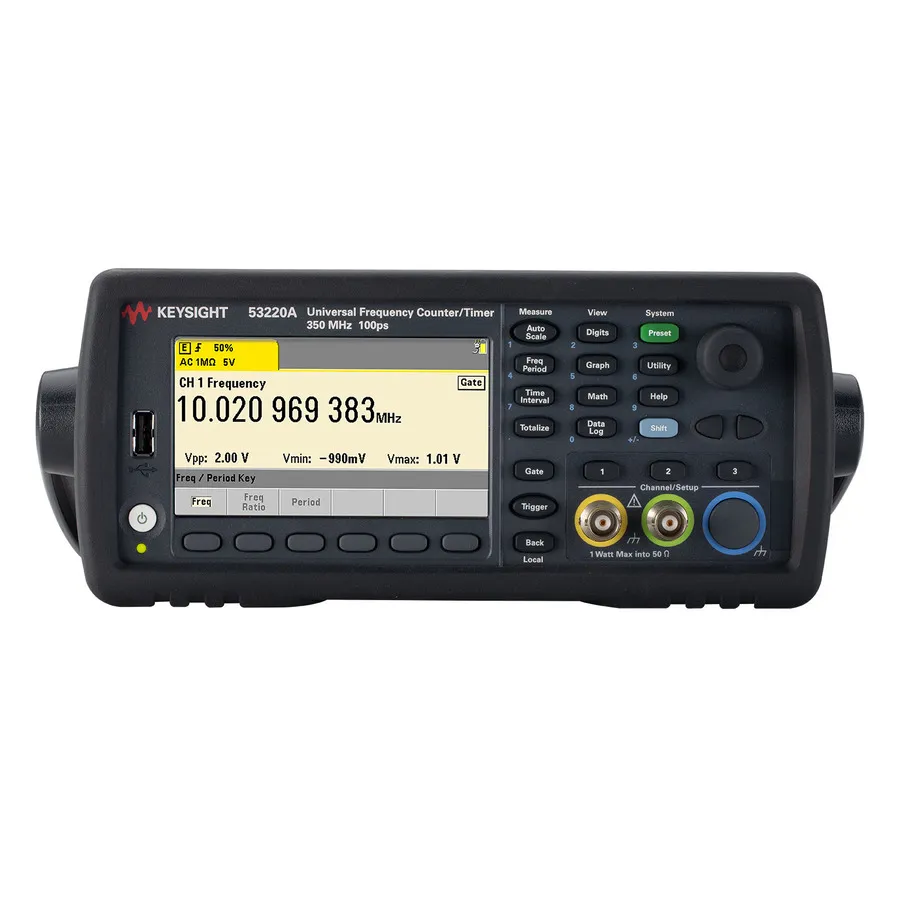

Keysight 53220A/106/202 Universal Frequency Counter/Timer
Request a quote
Keysight 53220A/106/202 is a 350 MHz universal frequency counter with 6 GHz microwave channel, 12-digit resolution, 1M reading memory, and LAN/USB/GPIB.
Product details
| Model | 53220A/106/202 |
| Manufacturer | Keysight |
| Category | Frequency Counters |
| Availability | Made to order |
Description
Overview
The Keysight 53220A/106/202 is a universal frequency counter/timer combining 350 MHz baseband and 6 GHz microwave measurement channels with front-panel Type N microwave input. It features up to 12-digit resolution, 1M reading memory, and full LXI/Ethernet connectivity for advanced frequency and time interval measurements.
Key Features
- Two 350 MHz input channels plus 6 GHz microwave channel with front-panel Type N input
- Up to 12 digits/second resolution with 100 ps single-shot time interval
- Up to 75,000 frequency and 90,000 time interval readings/second
- Comprehensive measurement functions: frequency, period, frequency ratio, voltage peak-to-peak, time interval, pulse width, rise/fall time, duty cycle, phase, totalize
- 1M reading memory and USB Flash storage
- Datalog trend plot and cumulative histogram capabilities
- Built-in math analysis and statistics with graphical display
- LXI-C/Ethernet LAN, USB, and GPIB connectivity
- Optional lithium ion battery for portable operation
- BenchVue software license included
Specifications
| Frequency | 6GHz, 350MHz |
| Number of Channels | Three Channel |
| Display Digits | 12 Digit |
| Series | 53200 Series |
| Interface | LAN, USB, GPIB |
| Resolution | 100ps |
| Special Features | 6GHz Microwave Input, Microwave Input - Front Type N |
