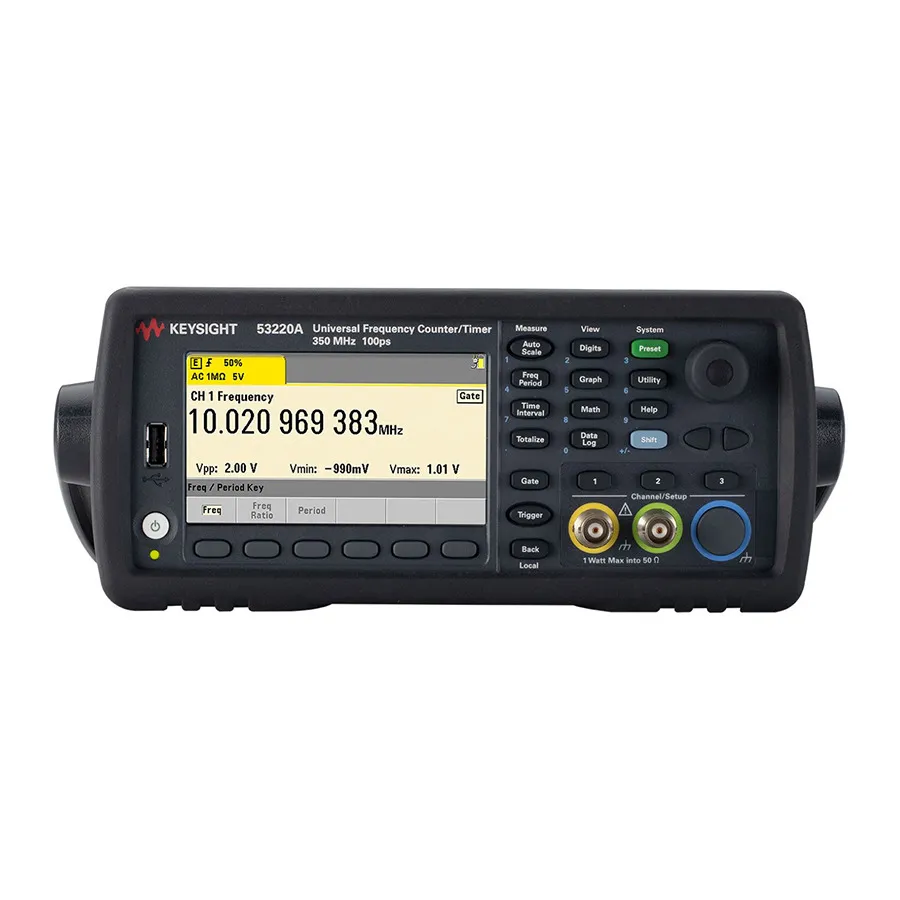

Keysight 53220A/010 Universal Frequency Counter Timer

Overview

The Keysight 53220A/010 is a universal frequency counter and timer from the 53200 Series, featuring an ultra-high-stability OCXO timebase. This instrument delivers precise time and frequency measurements with 350 MHz baseband frequency, 12 digits per second resolution, and 100 ps single-shot time interval measurement capability. The integrated 1M reading memory and LXI-compliant connectivity make it suitable for both benchtop measurements and automated test sequences.

Key Features

• 350 MHz baseband frequency with optional 6 or 15 GHz microwave channels
• Ultra-high-stability OCXO timebase for superior frequency accuracy
• Up to 12 digits/sec and 100 ps single-shot time resolution
• Multiple measurement modes: frequency, period, frequency ratio, time interval, pulse width, duty cycle, phase, totalize, and more
• 1M reading memory and USB Flash storage for data logging
• Up to 75,000 frequency readings/sec and 90,000 time interval readings/sec
• LXI-compliant with Ethernet LAN, USB, and GPIB connectivity
• Built-in data logging, trend plotting, histogram analysis, and math/statistics functions
• Optional battery for portable operation
• Includes BenchVue software license for automated test control

Applications

• Precise frequency and timing measurements in production and service environments
• RF and microwave signal analysis with optional high-frequency channels
• Automated test and measurement sequences
• Long-term frequency stability monitoring and analysis

Included Accessories

• IEC Power Cord
• USB Cable
• Documentation on CD
• Keysight IO Library
• BenchVue software license (BV0011B)
• Calibration certificate
