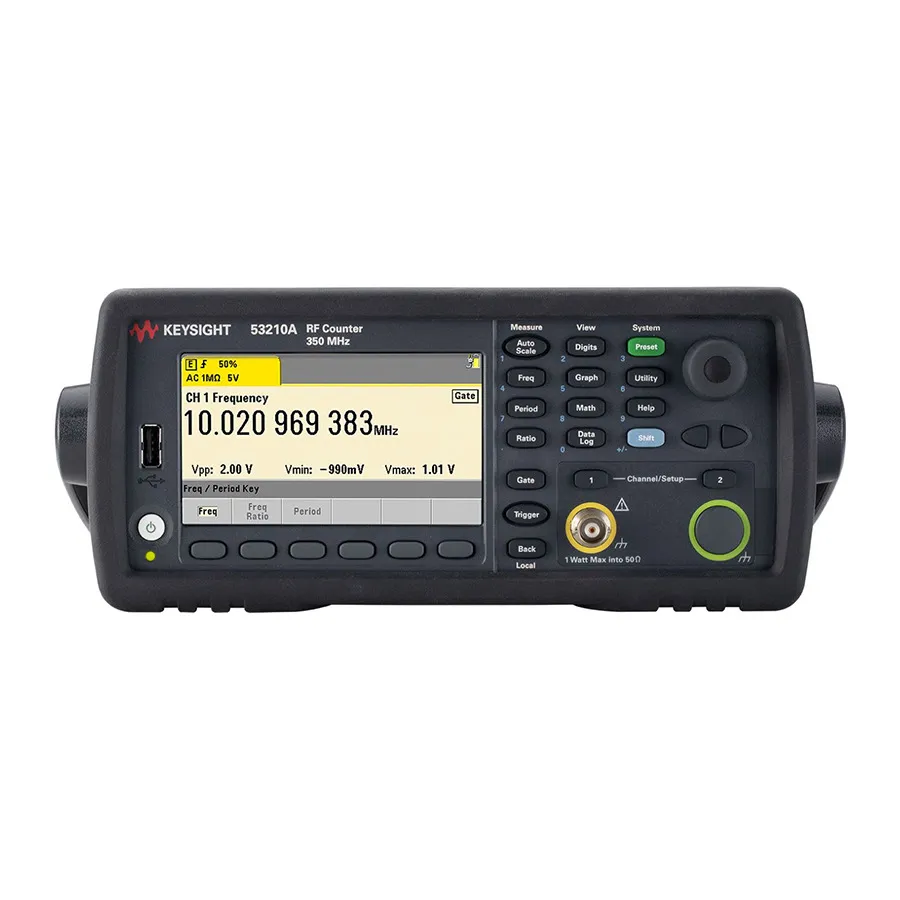

Keysight 53210A/010/106 RF Frequency Counter

Overview

The Keysight 53210A/010/106 is a dual-channel RF frequency counter with one 350 MHz baseband input and one 6 GHz microwave input. Featuring an ultra-high-stability OCXO timebase, this counter delivers fast, precise measurements with a simplified user interface, making it ideal for RF and microwave applications requiring multiple frequency bands.

As part of the Keysight 53200 Series, the 53210A/010/106 combines high-performance measurement capabilities with advanced analysis tools and seamless software integration through BenchVue.

Key Features

• 350 MHz baseband input channel
• 6 GHz microwave input channel (Option 106)
• Ultra-high-stability OCXO timebase (Option 010)
• 10 digits/second resolution
• Optional 15 GHz microwave input upgrade
• Built-in math analysis and color graphical display
• Trend plotting and histogram analysis
• Continuous, gap-free measurements with timestamps
• LXI-C/LAN, USB, and GPIB connectivity
• Included BenchVue software license for automation

Applications

• Dual-band RF and microwave frequency measurement
• Phase noise and jitter characterization
• Modulation domain analysis
• Time and frequency standards verification

Included Accessories

• BenchVue software license (BV0011B)
• IEC power line cord
• USB 2.0 cable (2 meters)
• User guide and technical documentation on CD
• SCPI/programmers reference and drivers (IVI-COM, LabView)
• IO library instructions
• Calibration certificate
