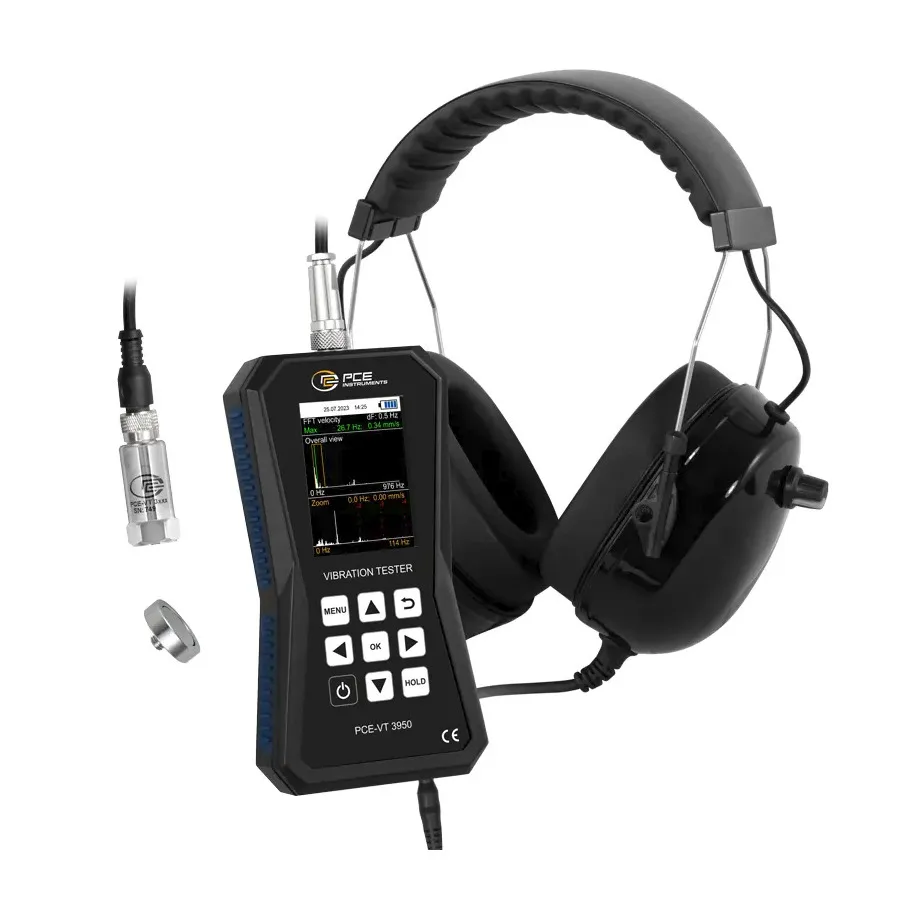

PCE Instruments PCE-VT 3950 Vibration Meter

Overview

The PCE Instruments PCE-VT 3950 is a portable vibration meter designed for fast and precise checking of vibrating parts, machines, and systems. This handheld device determines vibration displacement (0.000 to 3.9 mm), vibration velocity (0.00 to 399.9 mm/s), and vibration acceleration (0.0 to 399.9 m/s²). The meter features FFT analysis capabilities, route measurement for recurring inspections, and automatic ISO 10816-3 evaluation with good/bad rating display.

Key Features

• For mobile vibration measurement in the field
• Measuring range up to 399.9 m/s² acceleration / 15,744 in/s²
• FFT (Fast Fourier Transform) analysis mode for frequency spectrum evaluation
• Route measurement function for recurring measurements at identical points
• Automatic ISO 10816-3 evaluation with good/bad rating
• Data logger function for recording measurements
• Measurement parameters: RMS, peak, peak-to-peak, and crest factor
• 2.8-inch LCD display
• Rechargeable LiPo battery with 2500 mAh capacity (up to 20 hours runtime)
• Micro-USB interface for charging and data transfer
• Internal memory for manual and automatic data storage
• Included headset for audio feedback

Applications

• Field vibration measurement and machine diagnostics
• Maintenance and repair work on rotating machinery
• Condition assessment and predictive maintenance
• Vibration surveys of industrial equipment

Included Accessories

• Vibration sensor
• Spiral cable
• Magnetic adapter
• Micro USB cable
• USB stick with software and instructions
• Quick start guide
• Carrying case
• Headset
