PCE Instruments PCE-VT 3900 Vibration Meter
Request a quote
PCE Instruments PCE-VT 3900 is a portable vibration meter featuring FFT analysis, route measurement mode, measuring range to 399.9 m/s², automatic ISO 10816-3 evaluation, and 20-hour battery life.
Product details
| Model | PCE-VT 3900 |
| Manufacturer | PCE Instruments |
| Category | Force Measurement |
| Availability | Made to order |
Description
Overview

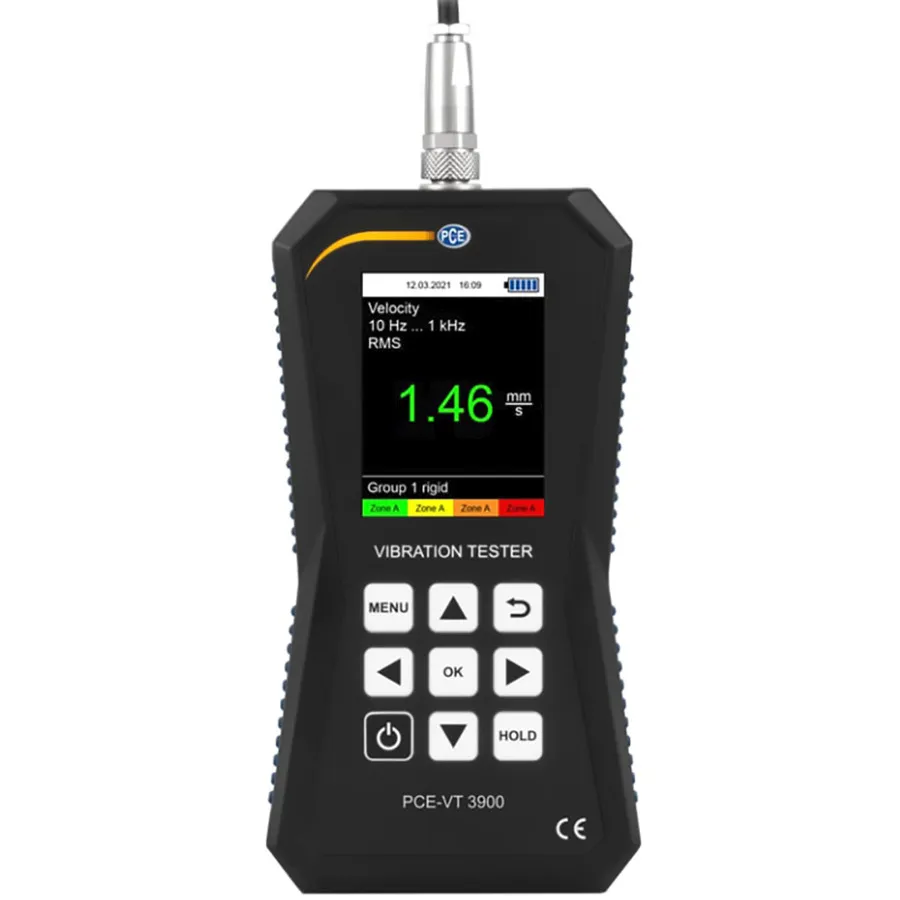

The PCE Instruments PCE-VT 3900 is a professional-grade vibration meter designed for fast and precise measurement of vibrating parts, machines, and systems. This portable device determines vibration displacement (0.000 to 3.9 mm), vibration velocity (0.00 to 399.9 mm/s), and vibration acceleration (0.0 to 399.9 m/s²). The meter includes advanced FFT analysis capabilities and automatic ISO 10816-3 evaluation to quickly assess machine vibration health.
Key Features
- Measuring range up to 399.9 m/s² acceleration / 15,744 in/s²
- FFT (Fast Fourier Transform) analysis mode for frequency spectrum evaluation
- Route measurement function for recurring measurements at identical points
- Automatic ISO 10816-3 evaluation with good/bad rating
- Measurement parameters: RMS, peak, peak-to-peak, and crest factor
- 2.48-inch LCD display
- Rechargeable LiPo battery with 2500 mAh capacity (up to 20 hours runtime)
- Micro-USB interface for charging and data transfer
- Internal memory for manual and automatic data storage
- Included software for graphic and tabular data analysis
Applications
- Predictive maintenance and condition monitoring of machinery
- Bearing and motor vibration assessment
- Plant and equipment health monitoring
- Routine vibration surveys at fixed measurement locations
Included Accessories
- Vibration sensor with external connection
- Spiral cable
- Magnetic adapter
- Micro USB cable
- USB stick with software and instructions
- Service bag
- User manual
Specifications
| Series | PCE-VT 3000 Vibration Meters Series |
| Battery Type | 3.7V Li-Polymer |
| Display Size | 2.48" |
| Frequency Range | 10-10000 Hz |
| Height | 6.50" |
| IO Interface | Micro USB |
| Length | 3.30" |
| Material | Stainless Steel |
| Memory | Internal Memory |
| Power Supply | 5V USB/Battery Powered |
| RPM | 600-50000 |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Measures Acceleration, Velocity, Displacement, RMS, Peak, Peak-peak, Crest factor, FFT Acceleration & Velocity, Route Measurement |
| Style | Hand-Held |
| Units of Measurement | Acceleration: m/s², Speed: mm/s, Expansion: mm |
| Warranty | 2 Years |
| Width | 1.30" |
