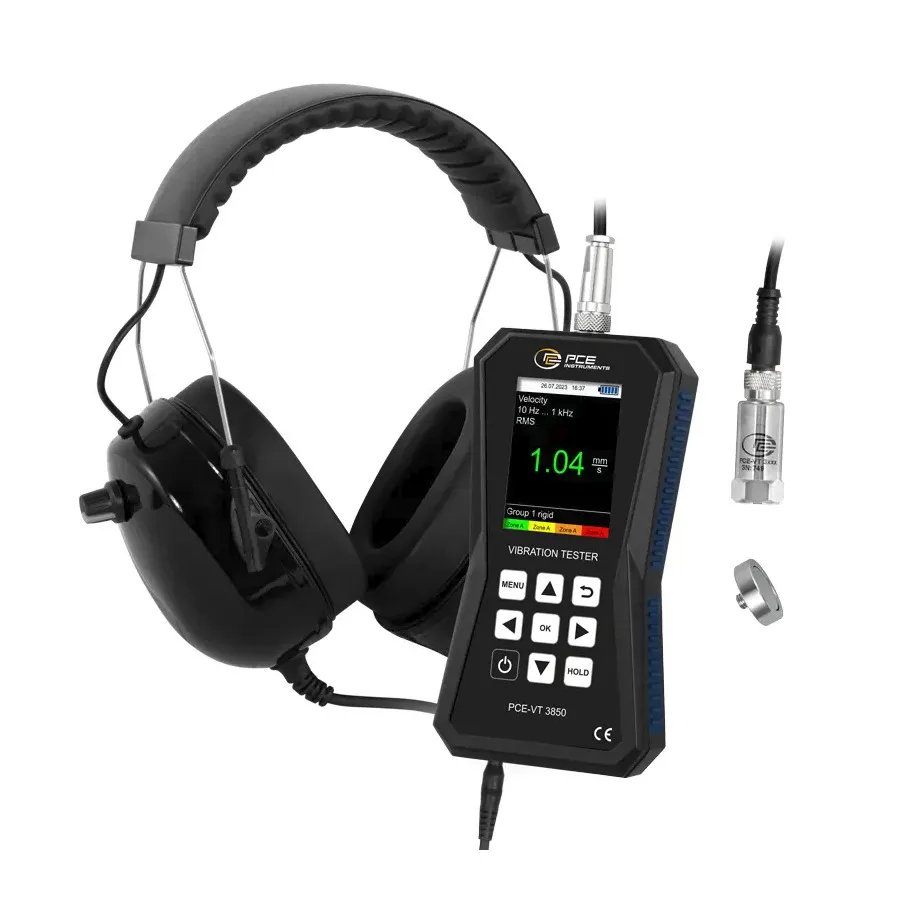

PCE Instruments PCE-VT 3850 Accelerometer

Overview

The PCE-VT 3850 is a portable accelerometer designed for mobile vibration measurement and machine condition assessment. It measures vibration displacement (0 to 3.9 mm), velocity (0 to 399.9 mm/s), and acceleration (0 to 399.9 m/s²) using an external sensor. The device features built-in data logging, automatic ISO 10816-3 evaluation, and included analysis software for comprehensive field-based vibration monitoring.

Key Features

• Measuring range up to 399.9 m/s² (15,744 in/s²) for acceleration
• Data logger function with internal memory for automated recording
• RMS, peak, peak-to-peak, and crest factor measurement modes
• Automatic ISO 10816-3 evaluation with good/bad machine assessment
• Hand-held portable design for true field mobility
• Rechargeable 2500 mAh LiPo battery with up to 20-hour runtime
• 2.8-inch LCD display for clear readability
• Micro-USB interface for charging and firmware updates
• Included software for graphic and tabular data analysis and CSV export

Applications

• Mobile vibration measurement of industrial machinery
• Predictive maintenance and machine health monitoring
• Bearing condition assessment and imbalance detection
• Compliance verification with ISO 10816-3 standards
• Field-based long-term vibration data collection and analysis

Included Accessories

• Vibration sensor for external measurements
• Spiral cable for sensor connection
• Magnetic adapter for mounting
• Micro-USB charging cable
• USB stick with analysis software and instructions
• Quick start guide
• Carrying case
• Headset
