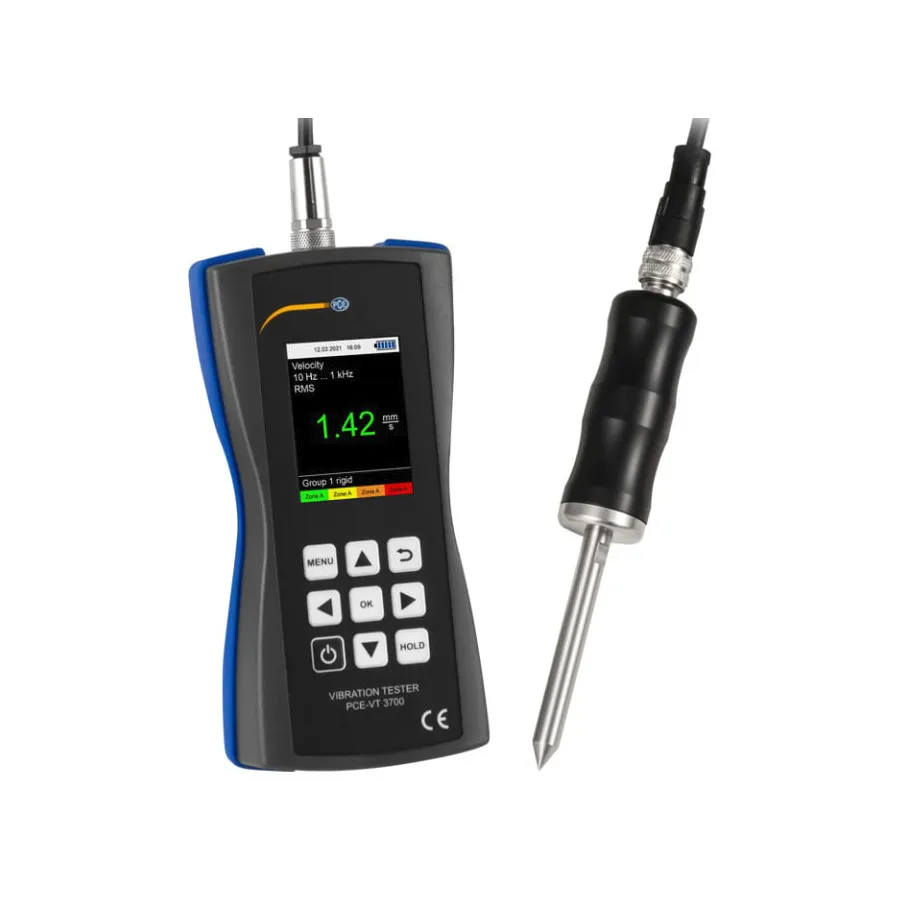

PCE Instruments PCE-VT 3700S Vibration Meter with Measuring Tip Sensor

Overview

The PCE-VT 3700S is an advanced vibration meter with specialized sensors for measuring vibration in hard-to-reach locations. It measures vibration acceleration, velocity, and displacement, and includes a measuring tip sensor and handle grip for enhanced accessibility. Like the standard PCE-VT 3700, it features automatic ISO 10816-3 evaluation mode that analyzes measured values and displays a good/bad assessment for quick machine condition determination.

Key Features

• Measures vibration acceleration (0.0 – 399.9 m/s²), velocity (0.00 – 399.99 mm/s), and displacement (0.000 – 3.999 mm)
• Measurement parameters: RMS, peak, peak-peak, crest factor
• Automatic ISO 10816-3 evaluation mode with good/bad indication
• Measuring tip sensor for hard-to-reach measurement locations
• Ergonomic handle grip for improved control
• 2.4-inch color graphic LCD display with menu instructions in plain text
• Hold and max value function
• Metric and imperial unit switching
• 12 selectable display languages
• Battery operated (3x AA)

Applications

• Vibration measurement in confined or hard-to-reach areas
• Machine imbalance detection and analysis
• Predictive maintenance programs
• Bearing and mechanical condition assessment

Included Accessories

• Sensor with spiral cable (PCE-VT 3xxx SENSOR)
• Magnet adapter (PCE-VT VMH)
• Handle grip (PCE-VT-HANDLE)
• Measuring tip (PCE-VT-NP)
• 3x 1.5V AA batteries
• Service bag
• User manual
