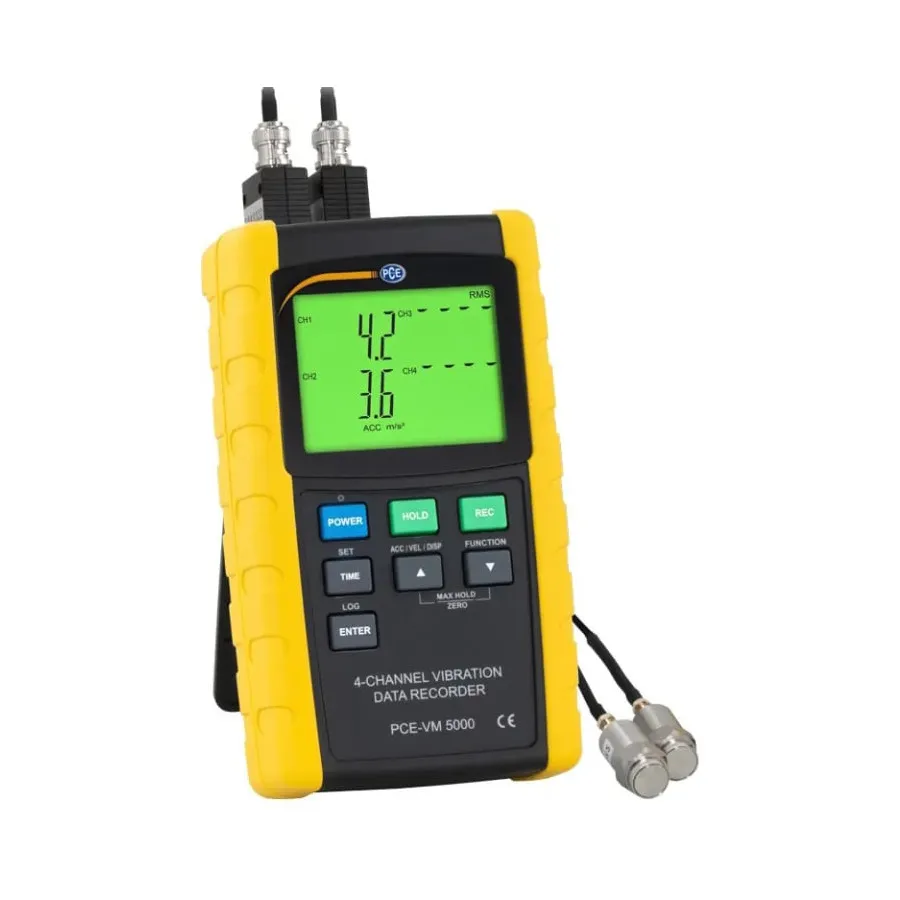

PCE Instruments PCE-VM 5000 Vibration Meter
PCE-VM 5000 is a 4-channel vibration meter recording acceleration, velocity, and displacement (10Hz–1kHz) with SD card storage and 2.4-inch backlit LCD display.
Product details
| Model | PCE-VM 5000 |
| Manufacturer | PCE Instruments |
| Category | Force Measurement |
| Availability | Made to order |
Description
Overview
The PCE-VM 5000 is a 4-channel vibration meter and data recorder that simultaneously measures vibration acceleration, velocity, and displacement. It features a large 2.4-inch backlit LCD display and includes two remote vibration sensors for comprehensive multi-point vibration monitoring.
This device records data to an SD memory card with flexible storage options (automatic or manual) and can export measurements as XLS files for further analysis in spreadsheet applications. The frequency range of 10 Hz to 1 kHz covers most industrial vibration analysis needs, with selectable measurement units for international compatibility.
Key Features
- 4 channels of simultaneous vibration measurement
- Measures acceleration, velocity, and displacement
- Frequency range: 10 Hz to 1 kHz
- 2.4-inch backlit LCD display
- SD card data storage with automatic or manual logging
- Adjustable sampling interval: 1 second to 3600 seconds
- RMS, max hold, and peak value measurements
- Selectable units: m/s², g, ft/s² (acceleration); mm/s, cm/s, inches/s (velocity); mm, inches (displacement)
- Data hold and max hold reset buttons
- Battery operated (8 AA batteries included)
- 2 remote sensors included with cables and magnetic feet
Applications
- Machine vibration monitoring and diagnostics
- Multi-point bearing and shaft analysis
- Predictive maintenance data collection
- Industrial equipment condition assessment
- Long-term vibration trend analysis
Included Accessories
- 2 remote vibration sensors with cables and magnetic feet
- 8 AA batteries (1.5V)
- Carrying case
- User manual
Specifications
| Battery Type | 1.5V AA |
| Display Size | 2.4" |
| Frequency Range | 10-1000 Hz |
| Height | 8.00" |
| IO Interface | RS-232 |
| Length | 3.00" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, RoHS |
| Special Features | Measures Acceleration, Velocity, and Displacement |
| Units of Measurement | Acceleration: m/s², g, ft/s² / Speed: mm/s, sm/s, inches/s / expansion: mm, inches |
| Warranty | 2 Years |
| Width | 1.50" |
