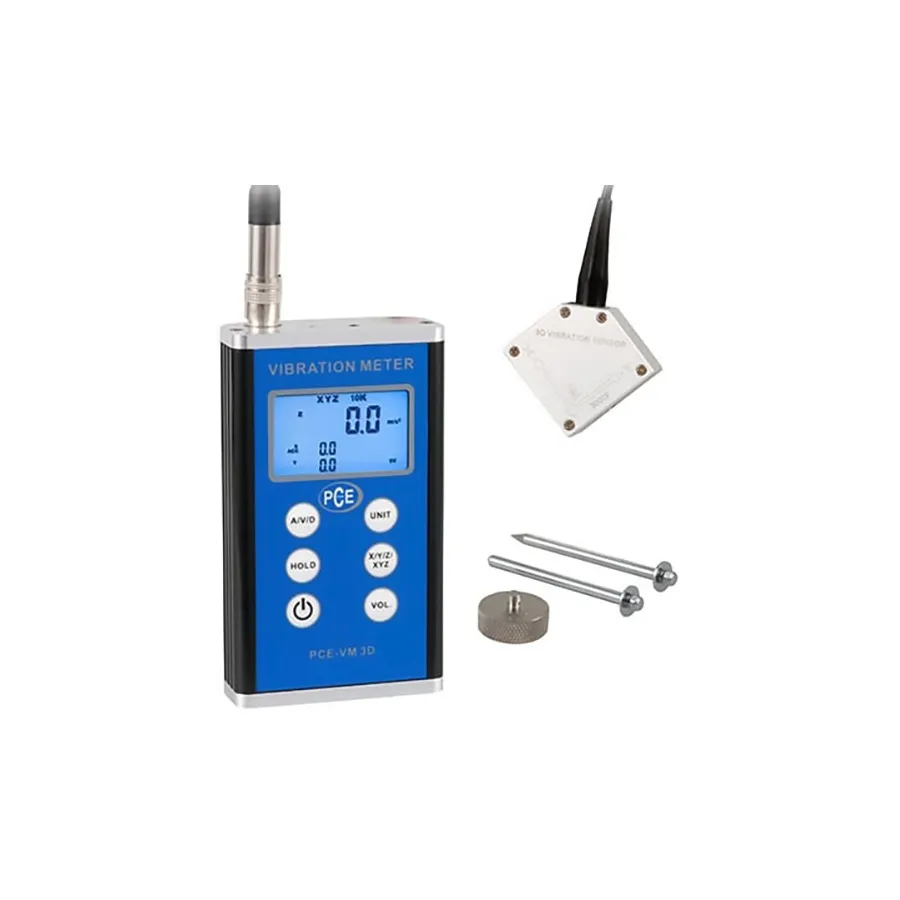

PCE Instruments PCE-VM 3D Vibration Meter

Overview

The PCE-VM 3D is a 3-axis vibration meter that measures acceleration, velocity, and displacement. It includes a piezoelectric 3-D x-, y-, z-axis vibration sensor, magnetic sensor, cable, and two measuring tips. This device enables quick and straightforward measurement of acceleration, vibration displacement, and vibration velocity to test vibrations on machines and components.

By checking the oscillation movement of your machinery using this vibration meter, you can prevent larger damage by locating and identifying the source of any vibration problems. Defects or excessive imbalances can be determined precisely with the meter, and early detection can significantly extend machine and engine lifespan.

Key Features

• Measures acceleration, velocity, and displacement
• Records vibration in three dimensions (x-, y-, and z-axes)
• Frequency range: 10Hz to 10kHz
• Large backlit LCD screen
• Spectral and common measurement modes
• Alarm function for threshold alerts
• Magnetic sensor and external sensor included
• Battery operated (AA), with auto-off to conserve battery life
• Headphone jack for audio feedback

Applications

• Machine condition monitoring and vibration testing
• Bearing and component vibration analysis
• Preventive maintenance in industrial and mechanical environments
• Fault detection in rotating machinery

Included Accessories

• 3-D x-, y-, z-axis vibration sensor with cable (1.5 m)
• Magnetic sensor
• 2 measuring tips
• 2 AA batteries (1.5V)
• Carrying case
• User manual
