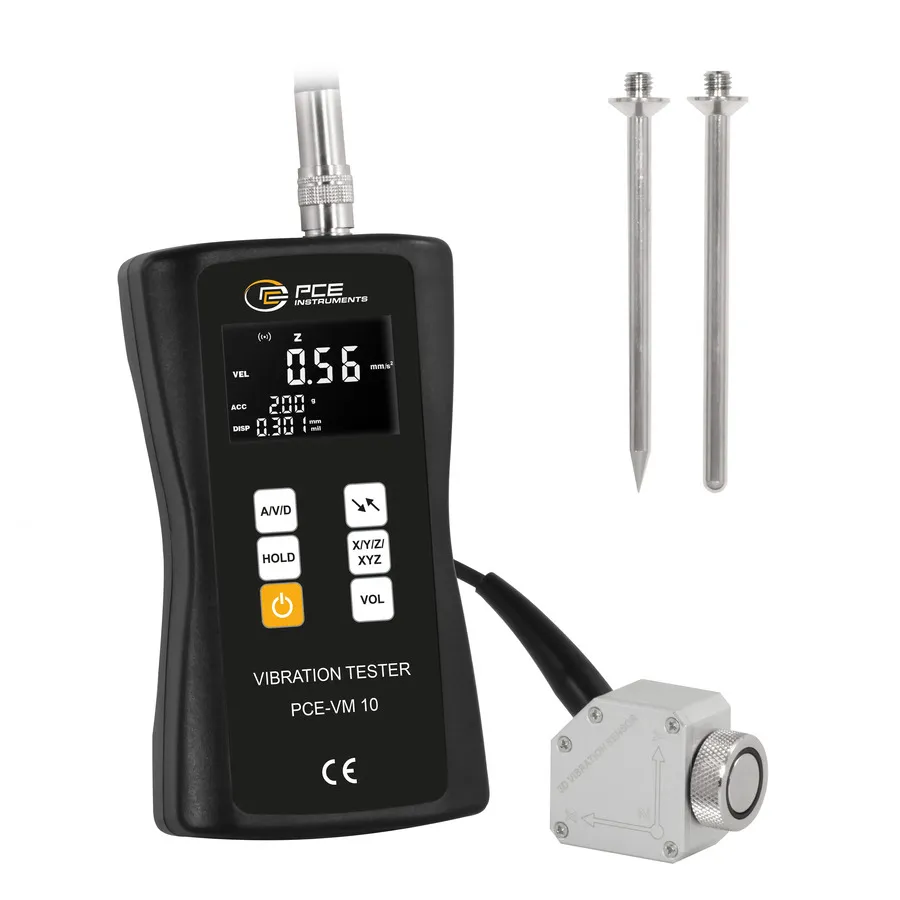

PCE Instruments PCE-VM 10 Vibration Recorder

Overview

The PCE Instruments PCE-VM 10 is a compact 3-axis vibration recorder for precise measurement of mechanical vibrations in rotating machinery and industrial equipment. Compliant with ISO 2954, it detects unbalance, misalignment, and mechanical faults on site, making it ideal for quality control, commissioning, and predictive maintenance.

Key Features

• 3-axis measurement (X, Y, Z axes) for comprehensive vibration analysis
• Measures acceleration, velocity, and displacement simultaneously
• Frequency range: 10 Hz to 10 kHz for broad vibration detection
• Multiple measurement units: mm/s, inch/s, m/s², g, ft/s², mm, mil
• Backlit 2-inch LCD display for readability in difficult lighting conditions
• Max measurement function displays peak values
• Lightweight at 163g for portable use
• Auto-shutoff after 30 minutes of inactivity to conserve battery
• ISO 2954 compliant

Applications

• Condition monitoring of rotating machinery and turbines
• Detection of bearing wear and mechanical imbalance
• Quality control during equipment commissioning
• Predictive maintenance in industrial plants
• Fault diagnosis in manufacturing facilities

Included Accessories

• 3-axis piezoelectric sensor
• Magnetic sensor mount
• Two measurement tips (conical and spherical)
• Four AAA 1.5V batteries
• Transport case
• Instruction manual
