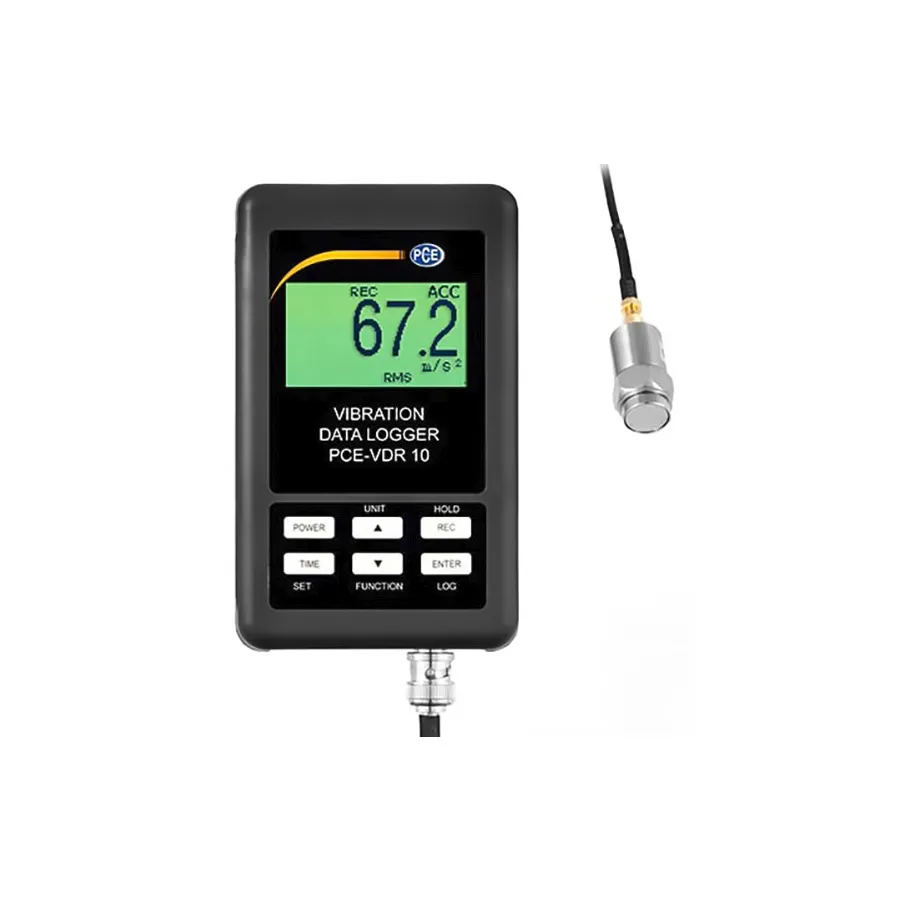

PCE Instruments PCE-VDR 10 Vibration Meter

Overview

The PCE-VDR 10 is a vibration meter and data logger designed for measuring vibration in machinery, structures, and equipment. It records acceleration and velocity in metric or imperial units and automatically logs data to an SD card with adjustable sampling intervals from 5 to 3600 seconds. The device includes a vibration sensor and magnetic base for flexible mounting.

Key Features

• Measures acceleration (m/s, g, ft/s) and velocity (mm/s, cm/s, in/s)
• Automatic SD card data logging with adjustable sampling (5–3600 seconds)
• RMS, max hold, and peak value measurements
• Min/max memory function with data recall and hold button
• Frequency range: 10 Hz–1 kHz
• Built-in clock and calendar for timestamped recordings
• Easy-to-read backlit LCD display
• Auto-off or manual power control

Applications

• Machinery vibration monitoring and diagnostics
• Structural health assessment
• HVAC system inspection
• Industrial equipment troubleshooting

Included Accessories

• Vibration sensor with magnetic base
• Wall bracket for mounting
• SD memory card
• 6x 1.5V AAA batteries
• Screw for 4-20mA output connection
• User manual
