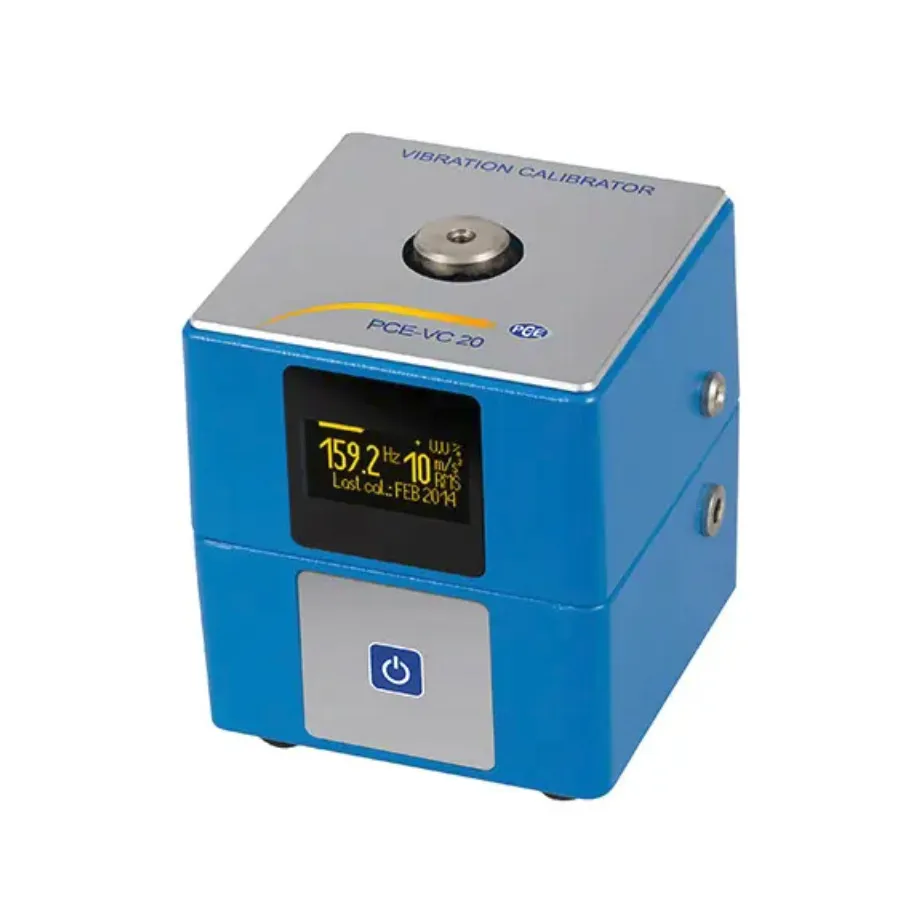

PCE Instruments PCE-VC20 Vibration Calibrator

Overview

The PCE-VC20 is a precision vibration calibrator used to calibrate vibration sensors, meters, analyzers, and testers. Operating at a quartz-stabilized frequency of 159.15 Hz (1000 rad/s), it generates load-independent vibration magnitudes with RMS values of 10 m/s² acceleration, 10 mm/s velocity, and 10 µm displacement. Suitable for equipment up to 600 g (1.32 lb), it provides accurate calibration for laboratory and field use.

The device features a display showing frequency, amplitude, error percentage, and calibration date. An internal control circuit and reference accelerometer maintain constant vibration levels, with an audible alert if error exceeds 3%. The rechargeable battery and AC adapter ensure portable operation, while the supplied carrying case facilitates safe transport.

Key Features

• Fixed quartz-stabilized frequency: 159.15 Hz (1000 rad/s)
• Load-independent vibration magnitude
• RMS values: 10 m/s² acceleration, 10 mm/s velocity, 10 µm displacement
• Suitable for calibrating equipment up to 600 g (1.32 lb)
• Display shows frequency, amplitude, error percentage, and calibration date
• Built-in reference accelerometer for constant vibration control
• Audible alert when error exceeds 3%
• Automatic power-off to save battery
• Rechargeable battery with AC power adapter
• Thread adapter for M3, M5, M8, 1/4"-28, and UNF 10-32 connections

Applications

• Calibration of vibration sensors and accelerometers
• Testing vibration meters and analyzers
• Laboratory and field vibration equipment validation
• Routine maintenance and calibration verification

Included Accessories

• Thread adapter for M3, M5, M8, 1/4"-28, and UNF 10-32 connections
• Battery-charging power adapter (100-240 V AC; 50/60 Hz)
• Factory calibration certificate
• User Manual
• Carrying case
