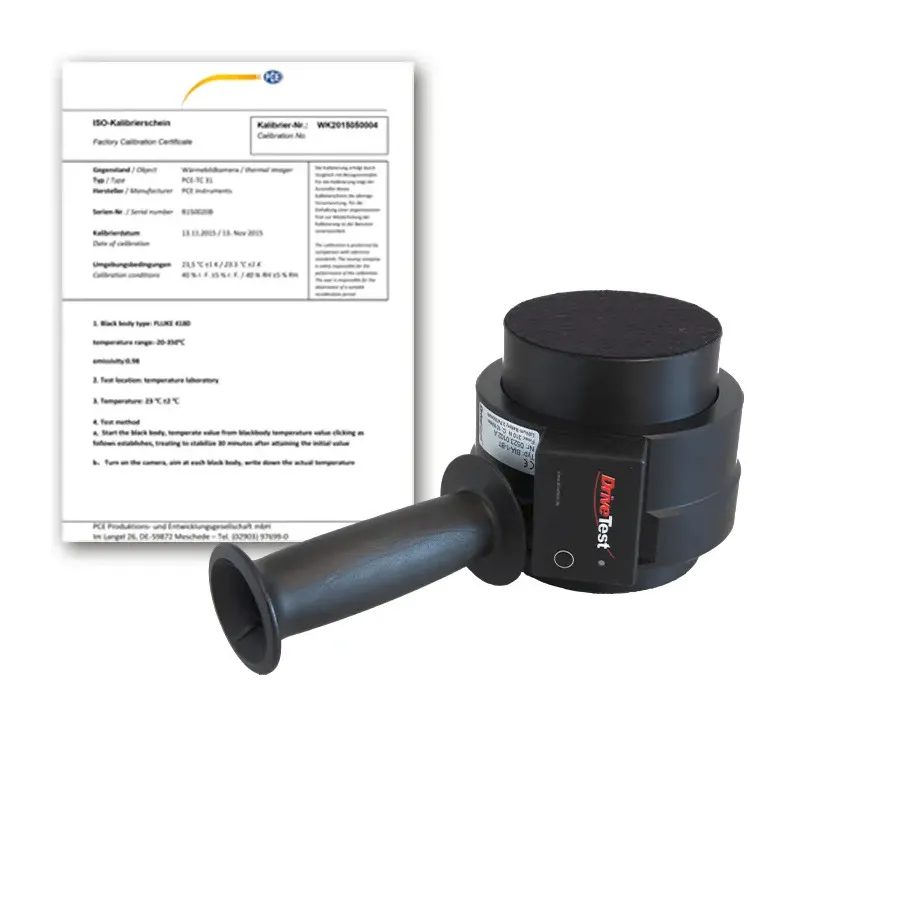

PCE Instruments BIA1BT-SY-10-310 Closing Force Transducer
Request a quote
PCE Instruments wireless closing force transducer for bus and train doors with automatic measuring point identification and PDF report generation.
Product details
| Model | BIA1BT-SY-10-310 |
| Manufacturer | PCE Instruments |
| Category | Force Measurement |
| Availability | Made to order |
Description
Overview
The PCE Instruments BIA1BT-SY-10-310 is a wireless, electronic closing force measuring device designed for rail vehicle and bus doors, as well as sliding steps. This device builds on the proven BIA Class 1 design, combining robust construction for harsh environments with the flexibility of wireless operation and user-friendly app control.
Key Features
- Wireless operation with no cables required
- Automatic measuring point identification via QR and barcode scanning
- Direct PDF report generation from measurements
- Precise measurements ensured by six-ball-bearing guide
- High-strength housing for extended service life
- Large temperature working range
- Supports relevant standards: EN 14752:2005, VDV 111, 2001/85/EG
- Available in multiple languages: DE, EN, ES, FR, IT, CN
- In-house calibration service and regular software updates
Applications
- Rail vehicle door closing force measurement
- Bus door closing force measurement
- Sliding step force measurement
Included Accessories
- Closing force transducer BIA-1 BT
- Force Meter app (available on Google Play Store)
- PinchPilot PC software (USB stick)
- USB Cable
- Manual
- Transport case with foam insert
- ISO calibration certificate
Specifications
| Series | SY Series |
| Accuracy | +/- 3% |
| IO Interface | USB |
| Power Source | 5 V DC via USB, Lithium polymerbattery 350 mAh |
| Resolution | 1 N |
