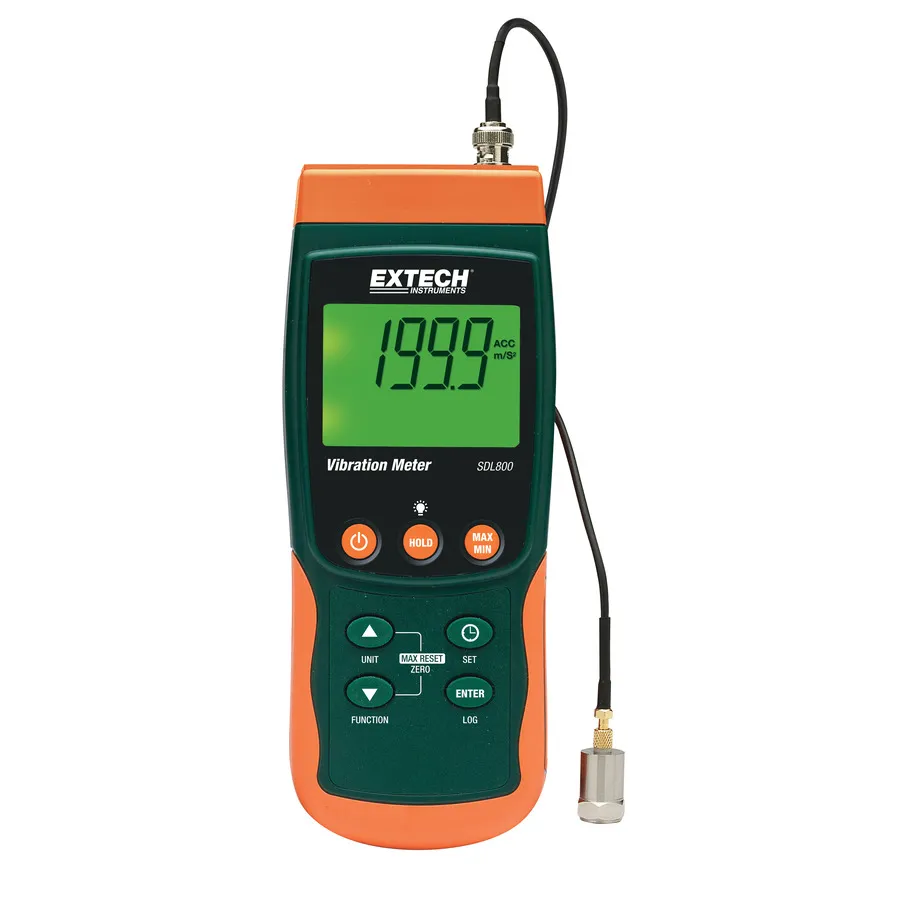

Extech SDL800 Vibration Meter/Datalogger
Request a quote
Extech SDL800 is a vibration meter with remote sensor and 1.2m cable, measuring 10Hz to 1kHz with ±5% accuracy and continuous SD card datalogging.
Product details
| Model | SDL800 |
| Manufacturer | Extech |
| Category | Force Measurement |
| Availability | Made to order |
Description
Overview
The Extech SDL800 is a portable vibration meter with a remote sensor mounted on a 1.2m cable, designed for measuring vibration in machinery, HVAC systems, and structural monitoring. It offers a frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits), meeting ISO 2954 standards for vibration measurement.
Key Features
- Remote vibration sensor with magnetic adapter on 47.2" (1.2m) cable
- Frequency range of 10Hz to 1kHz
- Basic accuracy of ±(5% + 2 digits)
- Measurement modes: RMS, Peak Value, or Max Hold
- Adjustable data sampling rate
- Offset adjustment for zero function or relative measurements
- Large backlit LCD display
- Manual storage of 99 readings
- Continuous datalogging via SD memory card (Excel format)
- Min/Max recording and data hold functions
- Auto power off feature
- Meets ISO 2954 standard
Applications
- Machinery vibration monitoring and diagnosis
- HVAC system performance assessment
- Structural vibration analysis
- Preventive maintenance programs
- Bearing and motor condition monitoring
Included Accessories
- Remote vibration sensor
- Magnetic mount adapter
- 6 x AA batteries
- SD memory card
- Hard carrying case
Specifications
| Battery Type | AAA |
| Includes | Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case. |
| Package Type | Brown Box |
| Warranty | 3 Years |
