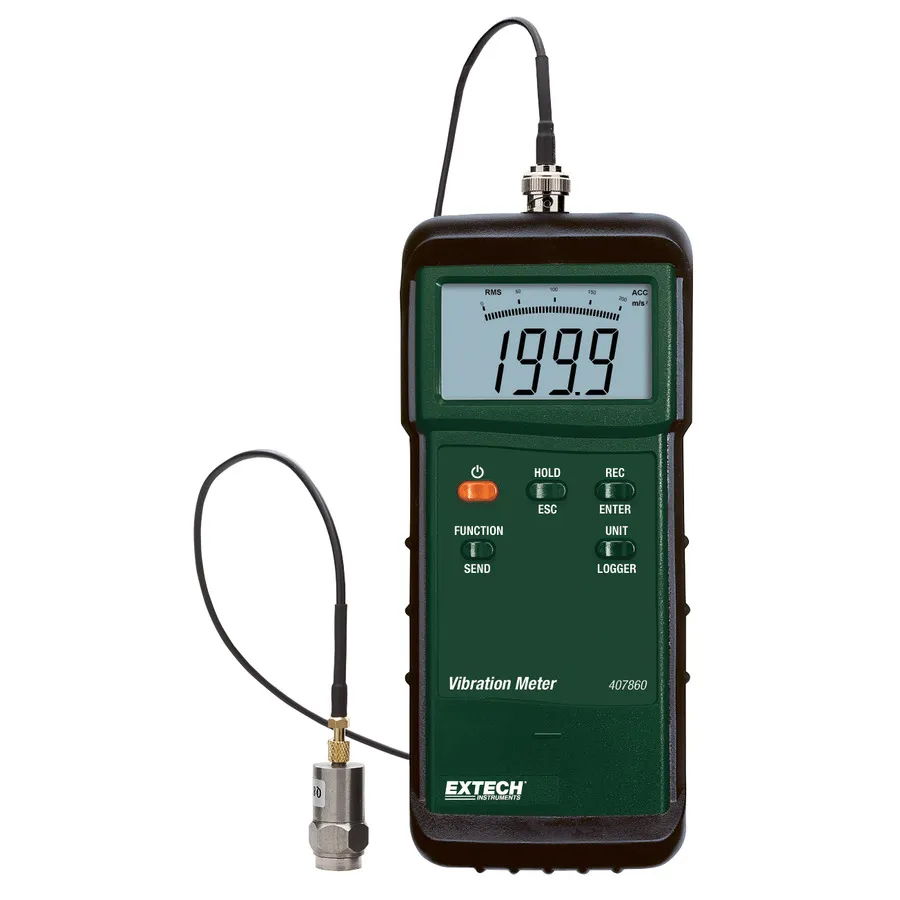

Extech 407860-NIST Vibration Meter

Overview

The Extech 407860-NIST is a heavy-duty vibration meter with NIST certification for industrial vibration analysis and equipment condition monitoring. It measures acceleration, velocity, and displacement with a basic accuracy of ±(5% + 2 digits) and supports both RMS and Peak Value measurement modes. The remote vibration sensor on a 1-meter cable with magnetic or stud mounting provides flexible measurement capability, and captured readings can be downloaded to a PC for analysis.

Key Features

• Acceleration range: 0 to 200 m/s² (resolution 0.5 m/s²)
• Velocity range: 0 to 200 mm/s (resolution 0.5 mm/s)
• Displacement range: 0 to 2 mm (resolution 0.005 mm)
• Frequency range: 10Hz to 1kHz
• Basic accuracy: ±(5% + 2 digits)
• RMS or Peak Value measurement modes
• Record mode with up to 500 readings storage and recall
• Remote vibration sensor with magnetic and stud mount adapters
• 39" (1m) sensor cable
• Data Hold and Auto shut-off functions
• 9V battery power or optional AC adapter
• Windows-compatible data logging software
• NIST calibration certificate

Applications

• Industrial machinery vibration monitoring
• Equipment bearing and component health assessment
• Predictive maintenance and reliability programs
• HVAC system performance evaluation
• Manufacturing quality control and diagnostics

Included Accessories

• Remote vibration sensor with magnetic mount
• 9V battery
• Protective rubber holster with stand
• Hard carrying case
• NIST calibration certificate
