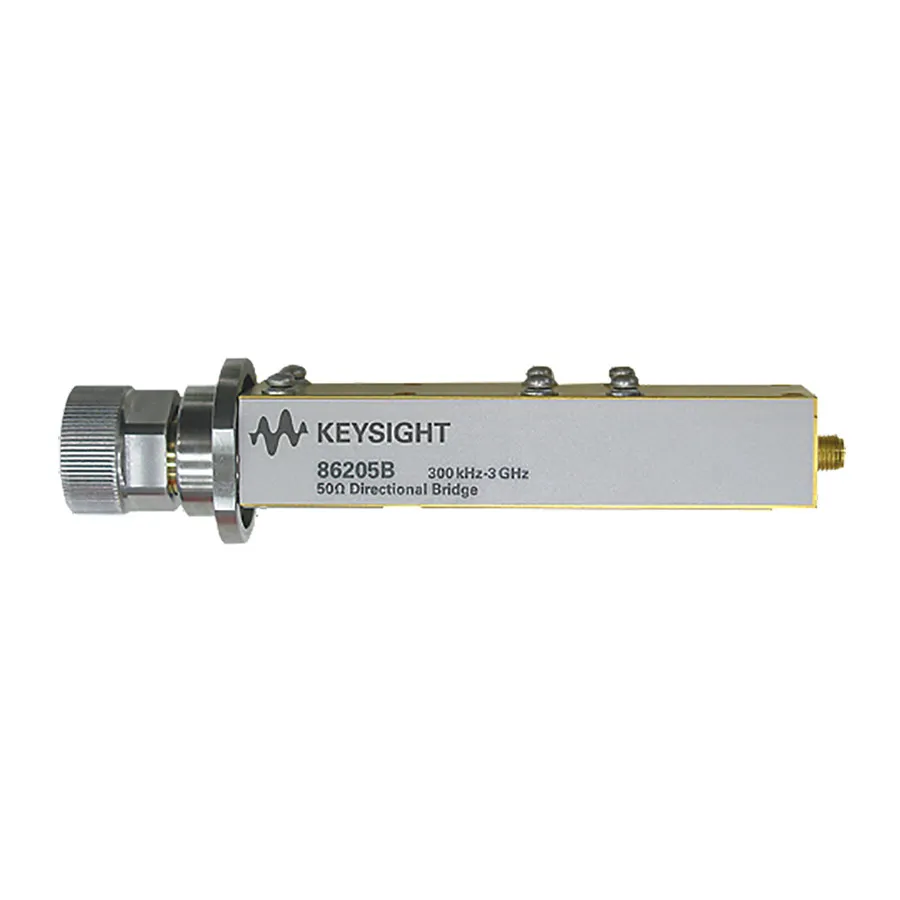

Keysight 86205B RF Directional Bridge
Request a quote
Keysight 86205B RF directional bridge for reflection measurements and signal leveling from 300 kHz to 3 GHz features 38 dB directivity and 2.0 dB insertion loss.
Product details
| Model | 86205B |
| Manufacturer | Keysight |
| Category | Directional Couplers |
| Availability | Made to order |
Description
Overview
The Keysight 86205B is a high-directivity 50-ohm RF bridge ideal for accurate reflection measurements and signal leveling in general-purpose RF applications. Operating from 300 kHz to 3 GHz, it delivers excellent directivity and minimal insertion loss for reliable signal monitoring.
Key Features
- Coupling factor: 18 dB ± 3 dB (0.3 MHz to 3 GHz)
- Directivity: 38 dB (0.3 MHz to 1.3 GHz); 33 dB (1.3 GHz to 3 GHz)
- Return loss: 14 dB (0.3 MHz to 3 GHz)
- VSWR: 1.5 maximum
- Insertion loss: 2.0 dB (0.3 MHz to 1 GHz); 2.5 dB (1 GHz to 3 GHz)
- Type-N female connectors
Applications
- Reflection and impedance measurement
- Signal source leveling and monitoring
- RF network analysis and characterization
- Antenna and transmission line testing
Specifications
