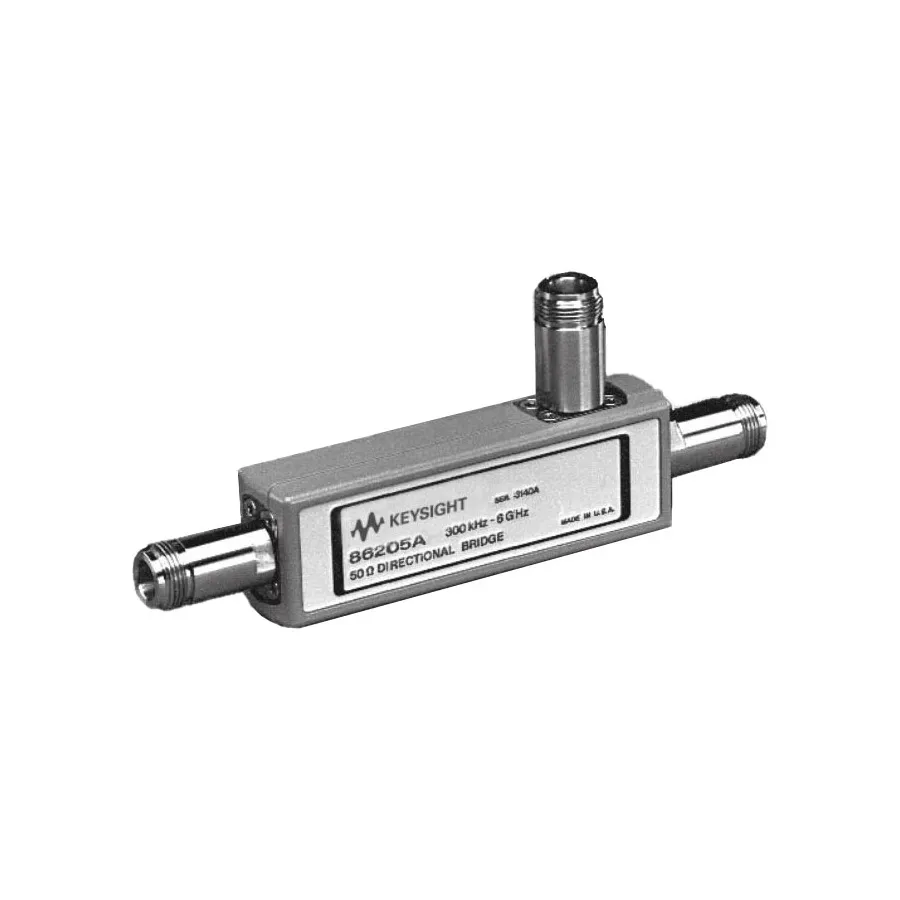

Keysight 86205A RF Directional Bridge
Request a quote
Keysight 86205A RF directional bridge for reflection measurements and signal leveling across 300 kHz to 6 GHz delivers 40 dB directivity and 1.5 dB insertion loss.
Product details
| Model | 86205A |
| Manufacturer | Keysight |
| Category | Directional Couplers |
| Availability | Made to order |
Description
Overview
The Keysight 86205A is a high-directivity 50-ohm RF bridge designed for accurate reflection measurements and signal leveling applications across general-purpose RF testing. Operating from 300 kHz to 6 GHz, it delivers superior performance with high directivity and low insertion loss.
Key Features
- Coupling factor: 16 dB + 0.15 dB/GHz (< 3 GHz); 16.5 dB - 0.20 dB/GHz (> 6 GHz)
- Directivity: 30 dB @ 0.3 MHz, 40 dB @ 2 GHz, 30 dB @ 3 GHz, 20 dB @ 5 GHz, 16 dB @ 6 GHz
- Return loss: 23 dB @ 2 GHz, 20 dB @ 3 GHz, 18 dB @ 5 GHz, 16 dB @ 6 GHz
- Insertion loss: 1.5 dB + 0.1 dB/GHz
- Type-N female connectors
Applications
- Reflection coefficient and impedance measurement
- Signal source leveling and monitoring
- RF network analysis and characterization
- Transmission line and antenna measurements
Specifications
| Series | 8620xx Series |
